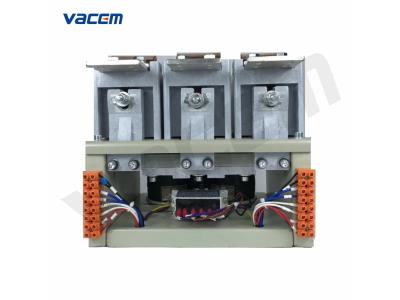

1.14kv Vertical AC Vacuum Contactor(CKJ5)
Inquire NowDescription
The 14kV Vertical AC Vacuum Contactor (CKJ5) is designed for efficient operation within power networks operating at 50Hz. Tailored for high performance, this contactor is engineered to handle a main circuit rated voltage of 1140V and a rated current ranging from 1000A to 1250A. It excels in making, breaking, frequently starting, and controlling AC motors, making it the ideal choice for various industrial applications.
Its versatility extends to forming magnetic starters in conjunction with various protective devices, including the JDB electronic integrated protection, JR9 overcurrent protection devices, and the RC absorption device. This contactor is particularly well-suited for applications requiring anti-explosion magnetic starters and large mineral lapping switch equipment. With compliance to GB/T 14048.4, IEC 60947-4-1, and JB/T 7122 standards, it guarantees reliability and performance that meets or exceeds international benchmarks.
Specifications
| Attribute | Details |
|---|---|
| Main Circuit Rated Voltage | 1140V |
| Rated Current | 1000A – 1250A |
| Frequency | 50Hz |
| Standards Compliance | GB/T 14048.4, IEC 60947-4-1, JB/T 7122 |
Additional Information
- Suitable for making, breaking, and controlling AC motors.
- Compatible with various protective devices.
- Ideal for anti-explosion applications.
