OEM ODM 1.5 ton electric forklift truck
Description

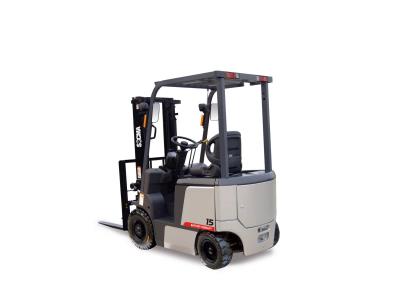

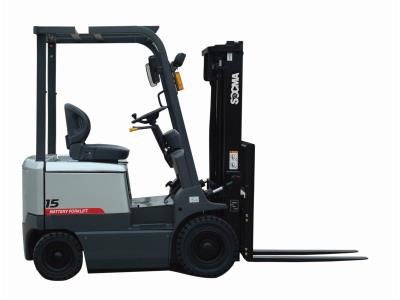

The 1.5 ton electric forklift truck is a robust and eco-friendly solution for your material handling needs. Designed to minimize operational costs and emissions, this electric forklift combines efficiency with sustainability. With a load capacity of 1500 kg, it is ideal for various warehouse and industrial applications. The truck features a battery-powered unit, ensuring zero emissions while providing powerful performance for both lifting and transporting goods. The ergonomic design, which includes a driver/seat operator type, enhances the user experience, while the air tires ensure smooth operation on various surfaces.
Specifications
| Category | Attribute | Value | Unit |
|---|---|---|---|
| Features | Manufacturer | SOCMA | |
| Model | FB15 | ||
| Load capacity | 1500 | kg | |
| Load center | 500 | mm | |
| Power unit | Battery | ||
| Operator type | Driver/seat | ||
| Tire type | Air tires | ||
| Wheel | 2X/2 | Number front/rear | |
| Dimension | Max. lifting height | 3000 | mm |
| Free lift | 155 | mm | |
| Fork size | 920*100*35 | mm | |
| Tilt range | 6-12 | deg | |
| Overall length (without fork) | 1995 | mm | |
| Total width | 1070 | mm | |
| Mast height (fork lowering) | 1995 | mm | |
| Overall height fork raised | 4030 | mm | |
| Height to head guard | 2100 | mm | |
| Turning radius (outside) | 1780 | mm | |
| Front face of fork to front axle | 375 | mm | |
| Min. right angle stacking aisle | 1770 | mm | |
| Performance | Max Travelling (full load) | 14/16 | km/h |
| Lifting (full load) | 350 | mm/s | |
| Lifting (no load) | 530 | mm/s | |
| Gradeability (full load) | 15 | % | |
| Weight | Truck weight | 2690 | kg |
| Weight distribution (full load) | 3635/555 | kg | |
| Weight distribution (no load) | 1110/1580 | kg | |
| Frame | Tires | 2/2 | Number front/rear |
| Model (front axle) | 6.00-9-10-10PR | ||
| Model (rear axle) | 16×6-8-10PR | ||
| Wheelbase | 1250 | mm | |
| Tread (front/rear) | 910/900 | mm | |
| Ground clearance (lowest point) | 105 | mm | |
| Brake | Service brake | Hydraulic-foot pedal | |
| Parking brake | Mechanical lever | ||
| Electric motor and controller | Battery Voltage/capacity | 48V-400 | V/AH/5hr |
| Weight (standard) | 735 | kg | |
| Electric motor (driving motor) | 8 | kw/60min | |
| Hydraulic driving motor | 8.2 | kw/5min |
Additional Information
- Eco-friendly and cost-effective operation
- Ideal for warehouse and industrial applications
- Ergonomic design enhances operator comfort
