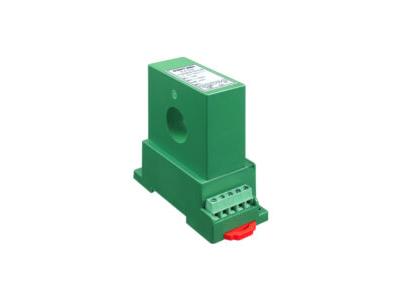

1-element DC Multi Function Transducer
Inquire NowDescription
The 1-element DC Multi Function Transducer is a sophisticated device designed for precise DC current measurement and isolation. Employing the Hall measurement principle, this transducer features a perforated input mode, ensuring a high level of isolation pressure. It effectively converts input DC current signals into linear standard DC signal outputs, making it perfect for a range of applications including computer field data acquisition, industrial control, and PLC control systems. With its high stability, low temperature drift, and reliable performance, this transducer is a vital component for automated control systems.
Features
- High stability
- Low temperature drift
- High reliability
- Strong surge voltage suppression
- Utilizes the Hall effect
- Compact size for easy installation
Applications
- Computer field data acquisition
- Industrial control
- PLC control and other automated control systems
Specifications
| Auxiliary Power | DC 12V, 15V, 24V or DC 11.5V-26V, wide power supply |
|---|---|
| Input Range | DC 0~10A-500A |
| Output | 0-5V, 0-10V, 0-20mA, 4-20mA, 0-5KHz |
| Ambient Temperature | -10°C～+60°C |
| Accuracy | 1.0 |
| Load Capacity | Voltage output load ≥ 2KΩ, current output load ≤ 250Ω |
| Temperature Drift | ≤500PPm/°C |
| Isolation Voltage | 2500 VDC |
| Response Time | ≤200 mS |
| Rated Power Consumption | ≤800mW |
| Output Ripple | ≤15mV |
| Frequency Range | None |
| Surge Impact Immunity | Power supply port four 4000V; Output port three 2000V |
| Burst Immunity | None |
| Input Overload Capacity | 20 times the nominal value of the measured current (maximum 500A, applied 1 second) |
| Operating Temperature | -10~60°C |
| Storage Temperature | -40~70°C |
