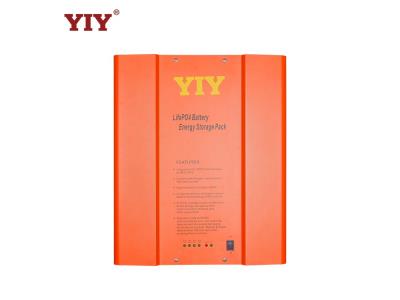

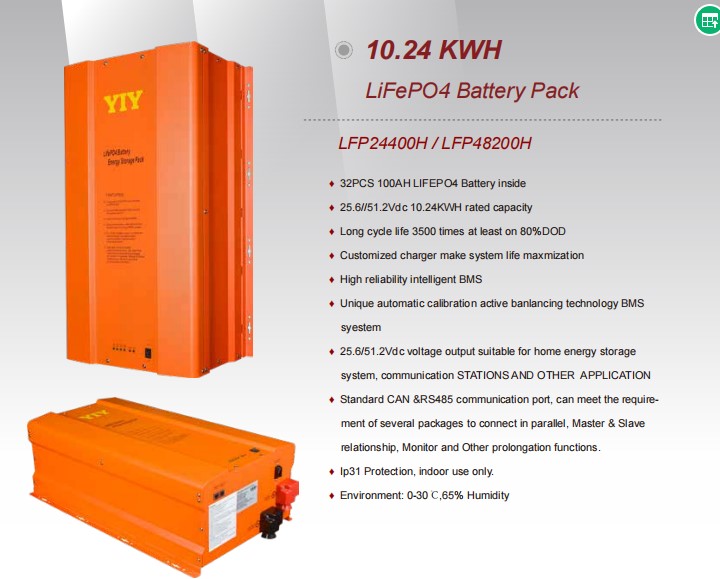

10.24KWH 25.6V 400AH / 51.2V 200AH LiFePO4 Battery Pack
Inquire NowDescription
The 10.24KWH 25.6V 400AH / 51.2V 200AH LiFePO4 Battery Pack is designed to provide reliable, clean energy for various applications. This powerful battery system incorporates 32PCS of 100AH LIFEPO4 batteries, ensuring high performance with a rated capacity of 10.24KWH at both 25.6V and 51.2V outputs. It is perfect for home energy storage, backup power for commercial and industrial environments, and communication stations.
With a remarkable cycle life of at least 3500 cycles at 80% DOD, this battery pack guarantees longevity and efficiency. The customized charger is designed to maximize the system’s lifespan. Additionally, the high-reliability intelligent Battery Management System (BMS) features unique automatic calibration and active balancing technology, offering exceptional performance and safety.
It is suitable for indoor use with an IP31 protection rating and operates effectively in environments with temperatures ranging from 0-30℃ and up to 65% humidity. Furthermore, the battery pack supports standard CAN & RS485 communication ports, allowing for parallel connections in master-slave setups, ensuring seamless monitoring and extension functionalities.

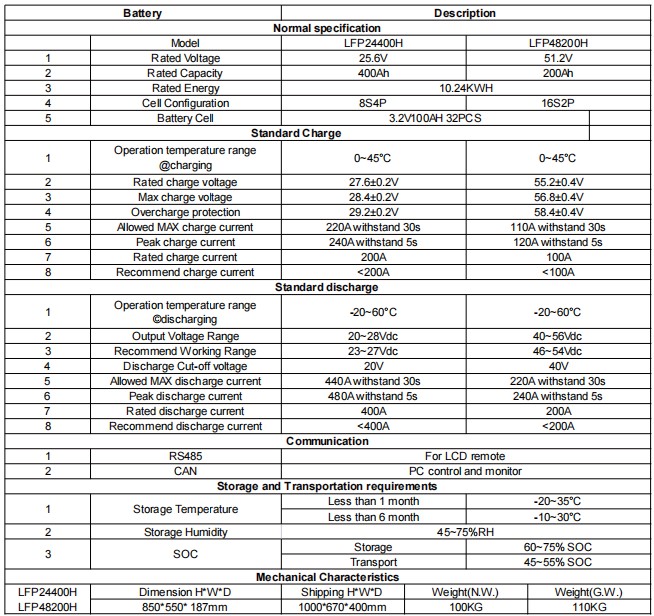

Specifications
| Attribute | Details |
|---|---|
| Rated Capacity | 10.24KWH |
| Voltage Outputs | 25.6V / 51.2V |
| Battery Type | LiFePO4 |
| Cycle Life | 3500 cycles at 80% DOD |
| Protection Rating | IP31 |
| Temperature Range | 0-30℃ |
| Humidity | 65% RH |
| Communication Ports | CAN & RS485 |
Additional Information

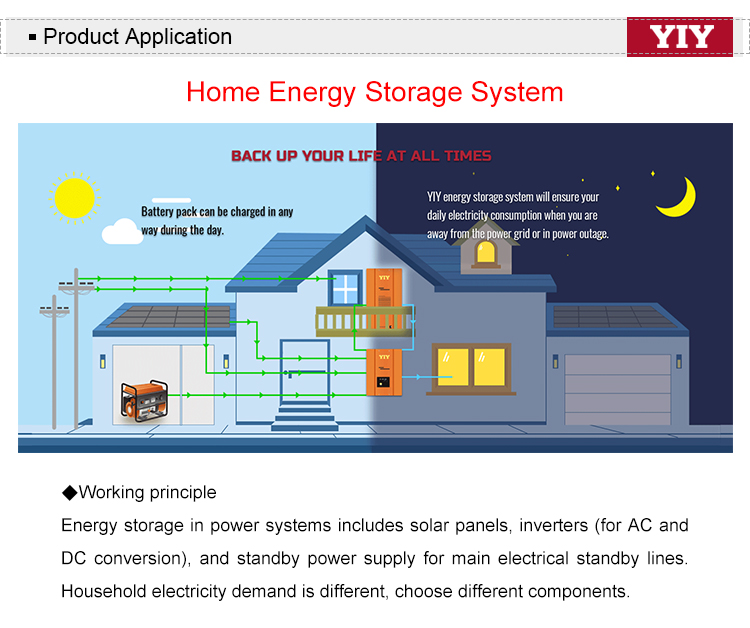

- Perfect for backup applications in houses, commercial, and industrial environments.

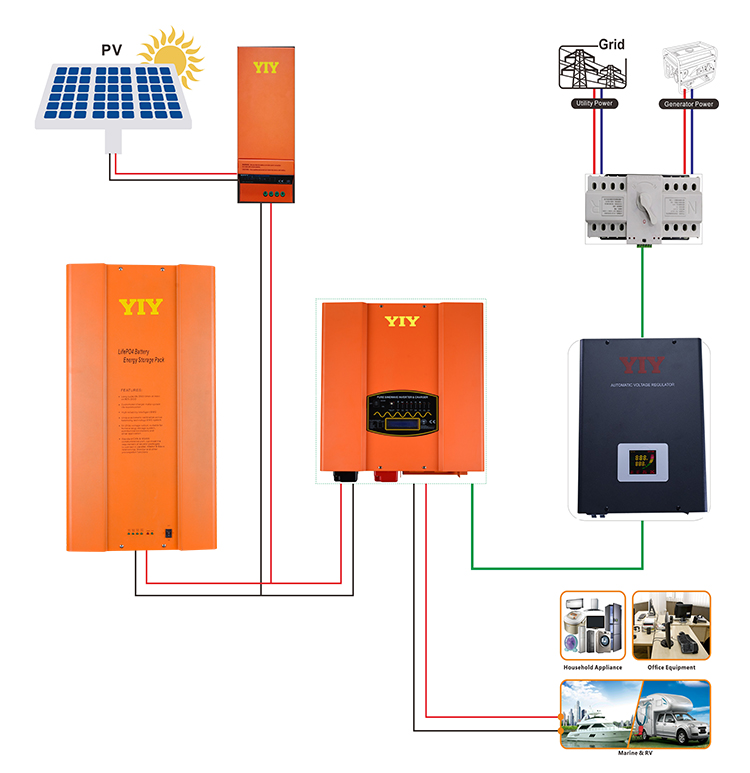

- Environmental friendly solar system integration.
- Independent power supply for vehicles and yachts.

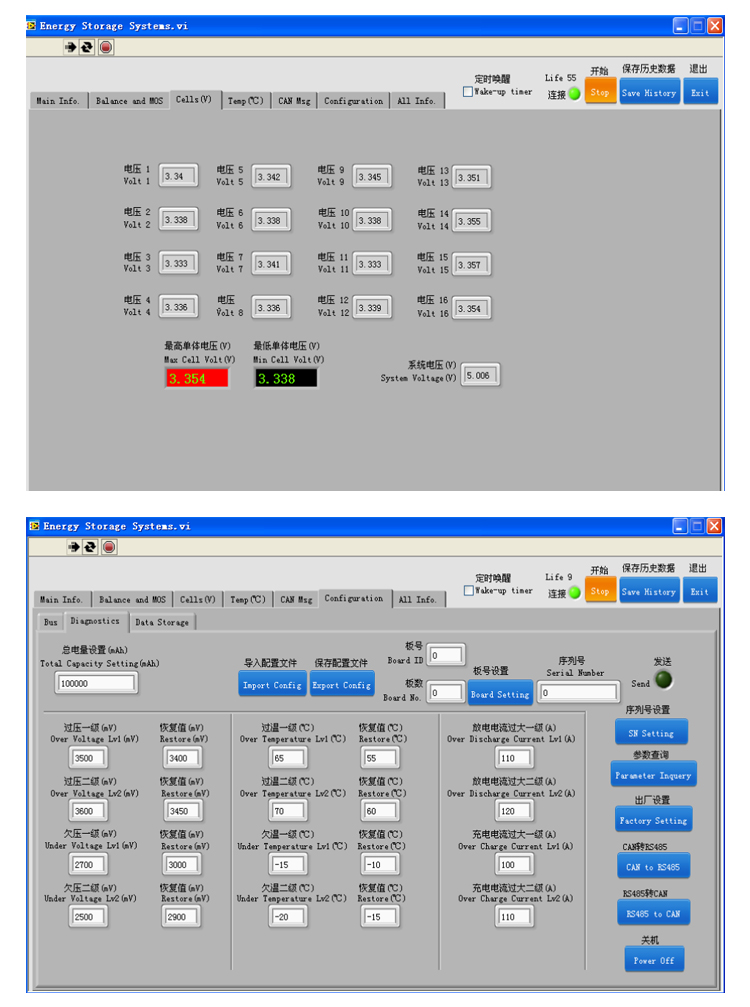

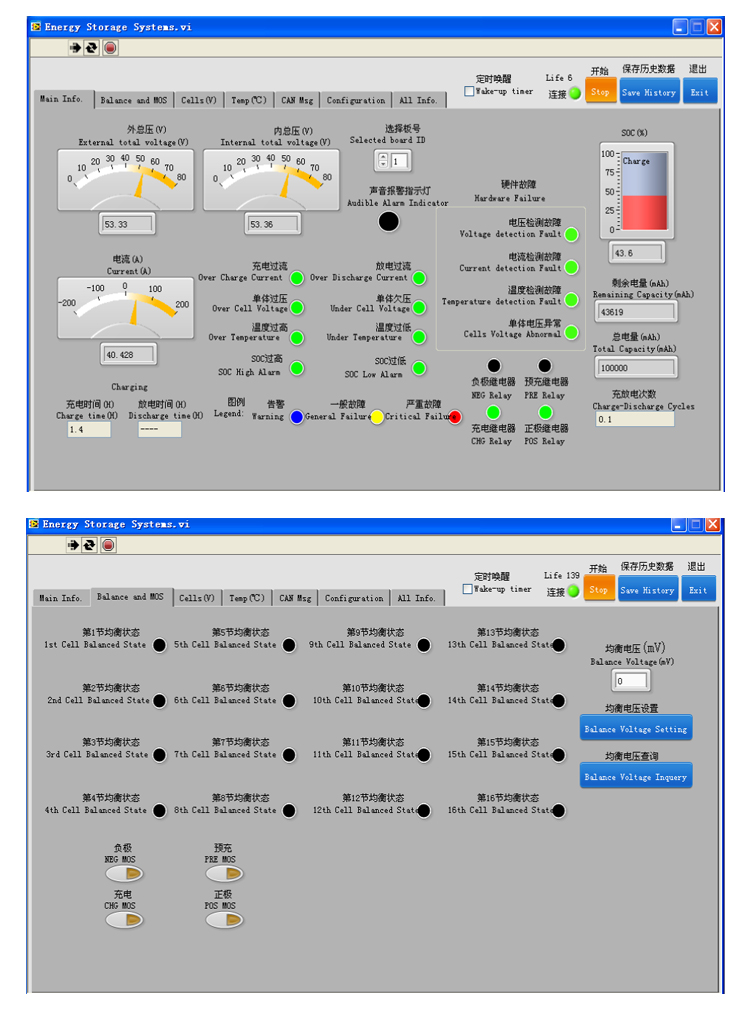

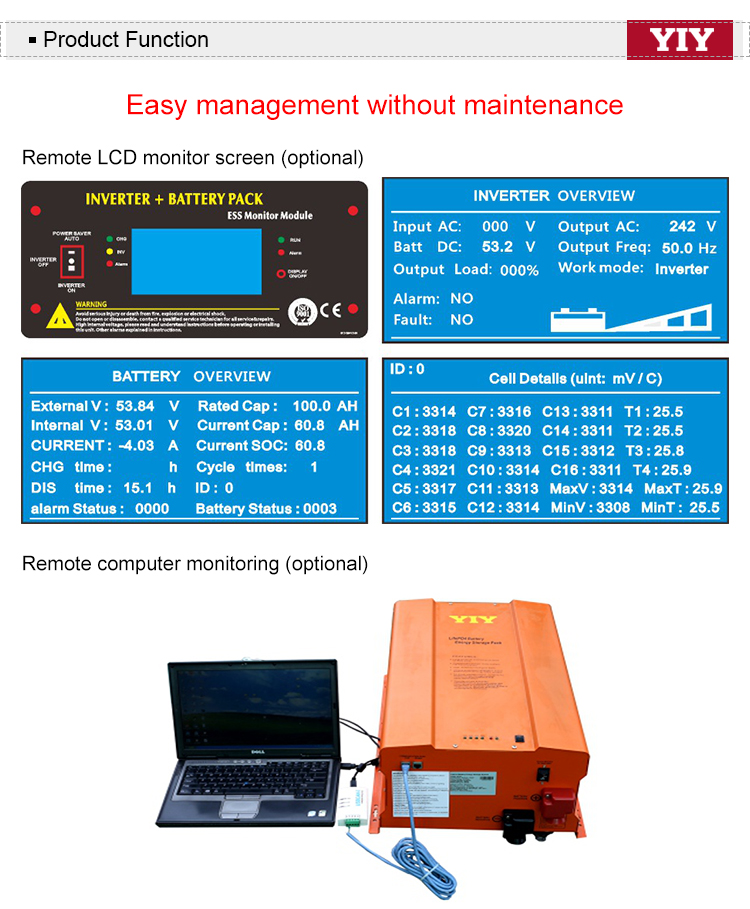

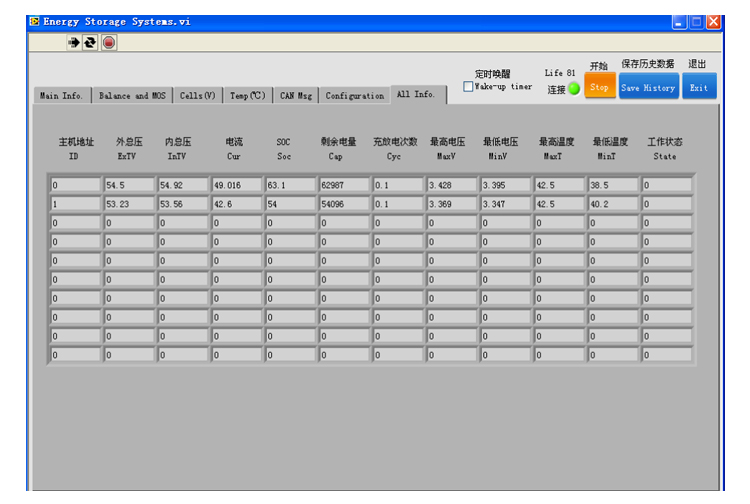

- Optional mobile app for real-time monitoring of the energy storage system (ESS).
- Passed CE, TUV, UN38.3, and MSDS certification tests.
