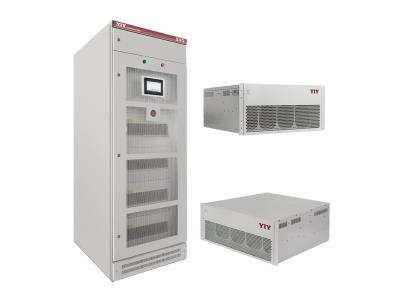

100 200 250 300 400Kvar SVG Static Var Generator FCL/Modular Three Phase 50Hz 400V

Inquire Now

Description

The 30Kvar ~ 400Kvar SVG Static Var Generator is an advanced solution for reactive power compensation, harmonic control, and three-phase unbalance control. This high-performance, compact, and cost-effective modular design is tailored for both low and high voltage electric power systems. It serves as an active power filter, also known as active power factor compensators (APFC), providing an instantaneous and reliable response to power quality issues. This versatile generator enhances equipment longevity, increases process reliability, and optimizes power system capacity while adhering to stringent power quality standards.

Specifications

Feature Specification

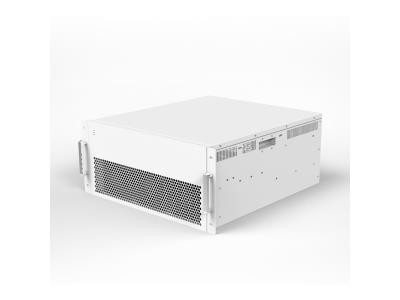

Modular Sizes 30Kvar, 50Kvar, 75Kvar, 100Kvar

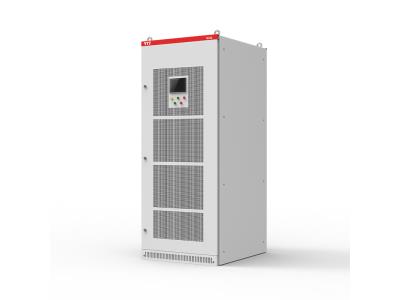

FCL Sizes 100Kvar, 200Kvar, 250Kvar, 300Kvar, 400Kvar
Max Neutral Wire Current 35kVar / 50kVar / 75kVar / 100kVar
Nominal Voltage AC380V ±20%
Rated Frequency 50Hz ±5%
Response Time ＜10ms
Reactive Power Compensation Rate ＞95%
Machine Efficiency ＞97%
Switching Frequency 16kHz
Installation Type Rack/wall hanging; into the way of line
Protection Grade IP20

Additional Information

  • Protection Functions: Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc.
  • Altitude without Derating: ＜2000m
  • Operating Temperature: -20 ~ +50℃
  • Humidity: ＜90%RH
  • Noise Level: ＜60dB
