1000-680 Arch Sheet Roof Building Machine
Inquire NowDescription
The 1000-680 Arch Sheet Roof Building Machine is a robust and reliable solution designed for high-efficiency arch roof roll forming. Its advanced engineering ensures precision and durability, catering to various customer needs. The machine boasts a multitude of features including overseas technical guidance services, a professional engineering team for design support, and a strong after-sales service commitment. Manufactured in-house, the accessories add to cost efficiency while meeting strict safety export standards. With a rich history in quality control and customer satisfaction, this machine promises long-lasting performance and versatility for construction projects worldwide.
Specifications
| Attribute | Details |
|---|---|
| Production Name | Bohai Arch Roof Roll Forming Machine |
| Size | 8900 mm X 2300 mm (With Single Axle 4 Tires) |
| Total Weight | About 10 Ton |
| Thickness of Bending Leaf | 10mm Thickness, Processed by CNC |
| Cutting Blade | 12CrMov Material, Heat Treatment |
| Cutting Type | Mechanical Cutting |
| Forming Type | Roll-Formed and Length-Set Cutting |
| Power | Total Motor Power: 15.2 KW Roll Forming Motor Power: 5.5 KW Cutting Power: 3.0 KW Bending Power: 4.5 KW |
| Seaming Power | 1.1 KW + 1.1 KW |
| Roller Material | 45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating |
| Shaft Material | 45# High-Quality Steel, Galvanized |
| Stand of Molding | 13+1 Steps |
| Feeding Width | 600 mm |
| Effective Width | 305 mm |
| Using Rate | 50.8% |
| Thickness Coil | 0.5-1.6 mm |
| Speed | Forming Part: 15 m/min Bending Part: 13 m/min Seaming Part: 16 m/min |
| Suitable Span | 4~24 m |
| De-Coiler | Inner-Diameter of Coil: 450mm ~ 650mm Max Width of Coil: 600mm ~ 620mm Load: 10 Ton |
Additional Information
For optimal performance, regular maintenance is recommended. The machine’s components are designed for easy accessibility, allowing for efficient servicing and upgrades. Should you require any assistance, our dedicated customer service team is available for prompt support.

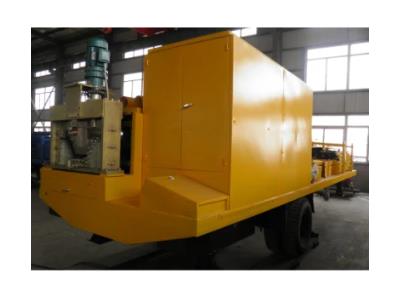

Machine Photos:
