1000V DC Solar Photovoltaic Cylindrical Fuse Holder Link LOW Voltage High IEC
Inquire NowGRL commit to provide customized solutions to satisify your unique request.
This series fuse is suitable for AC 50Hz , rated voltageto 5000V,rated current to 1250A. lt is mainly used in the electric installation for protecting circuit from overload and short circuit(gG/GL);it also may derive for protecting the semiconductor device and others complete set installment from short-circuit(aR)as well as the electric motor from short-circuit.
The rated breaking capability for this series fuse is to120KA.
This series fuse conforms to national standard GB13539 and International electrical committee standa rd IEC60269.
technical parameter of fuse holder
| Features | ||||
| According to | IEC60269.1(2009),IEC60269.6(2010) and CE safety certificate | |||
| Rated Voltage | DC1000V | |||
| Rated Current | 8A-32A | |||
| Operating Class | gPV | |||
| Rated Breaking capacity | 33kA | |||
|
Type |
Assorted Fuse |
Rated Voltage (V) |
Rated Current (A) |
Packaging (pcs) |
|

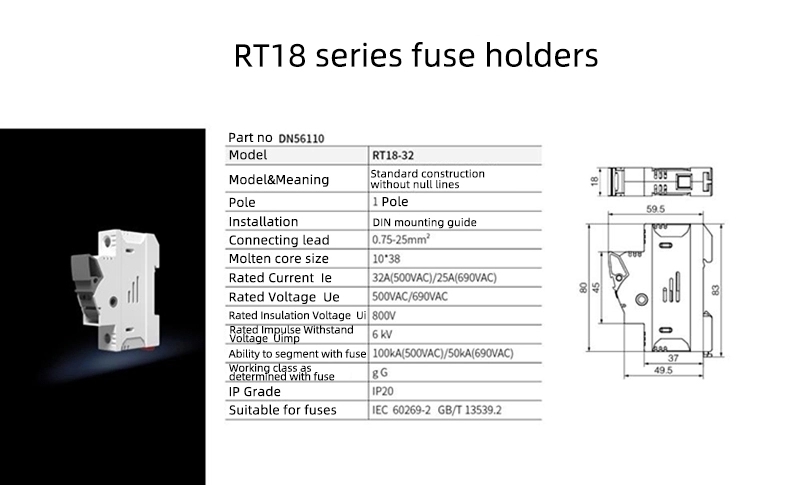

RT18-32 1P |
1038 |
380–500 |
32 |
240 |
|

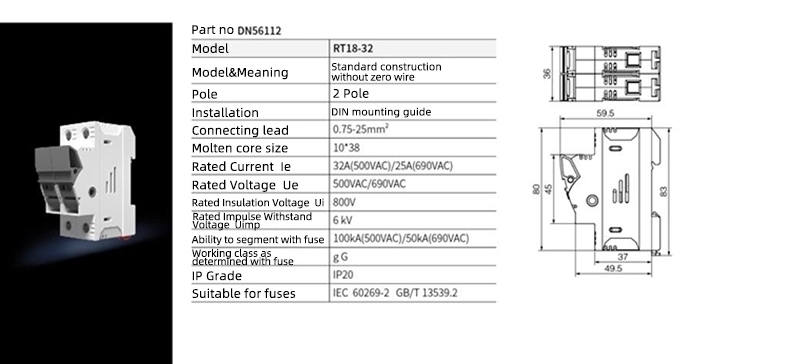

RT18-32 2P |
32 |
120 |
||
|
RT18-32 3P |
32 |
80 |
||
|
RT18-63 1P |
1451 |
63 |
100 |
|
|
RT18-63 2P |
63 |
50 |
||
|
RT18-63 3P |
63 |
33 |
||
|
RT18-32(x)1P |
1038 |
32 |
240 |
|
|
RT18-32(x)2P |
32 |
120 |
||
|
RT18-32(x)3P |
32 |
80 |
||
|
RT18-63(x)1P |
1451 |
63 |
100 |
|
|
RT18-63(x)2P |
63 |
50 |
||
|
RT18-63(x)3P |
63 |
33
|
