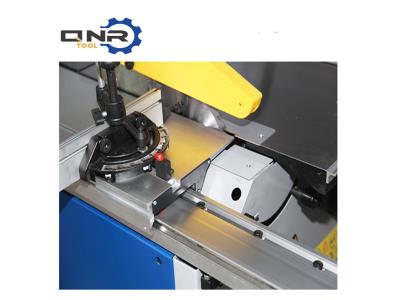

10″Compact Panel Saw w/48″ sliding beam
Inquire NowDescription
Experience precision cutting with the 10″ Compact Panel Saw, equipped with a 48″ sliding beam that enhances your woodworking capabilities. This saw is built on the foundation of our popular 10″ table saw model W1-TS10, ensuring reliability and performance. The quiet induction motor features thermal overload protection, preventing overheating during extended use. The cast iron precision ground table provides a stable cutting surface, while the 4′ travel sliding beam allows for a generous 1250mm cutting length. Ideal for handling large panels up to 8’×4′, this saw is designed for professional results.
- Beam locks in place when using the rip fence for enhanced safety.
- Strong telescopic arm supports larger panels effortlessly.
- Includes a standard 100mm dust extraction outlet with dust hoses to maintain a clean workspace.
- Optional wheel kit available for easy mobility.
Specifications
| Attribute | Details |
|---|---|
| Model | W1-PS10 |
| Blade Diameter | 250*30mm |
| Power | 1500w |
| Blade Speed | 4000rpm |
| Max Cutting Height | 80mm/90° – 54mm/45° |
| Dust Chute | 100mm |
| Main Table Size | 650*350mm |
| Extension Table | 650*270 + 350*350mm |
| Sliding Carriage | 1300*238mm |
| Sliding Table Travel | 1250mm |
| Overall Size | 129*100*100cm |
| Gross Weight | 166/142kg |
| Packing Size | 70*70*93cm + 140*27*17cm |
| Quantity per 20’/40′ Container | 48/102pcs |
Additional Information
This saw is tailored for efficiency and ease of use in professional settings, making it a must-have tool for carpenters and woodworkers alike.
