※ Technical Characteristics:
– Light weight,small volume,it can be easily transported and installed
– High mechanical strength
– Good performance of anti-pollution
– Free of maintenance

※ Application: (10kV (1kV) Pin Type Composite Insulator)

HV :
Be made of silicone housing, core rod and end fitting,

※ Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

※ Fitting:

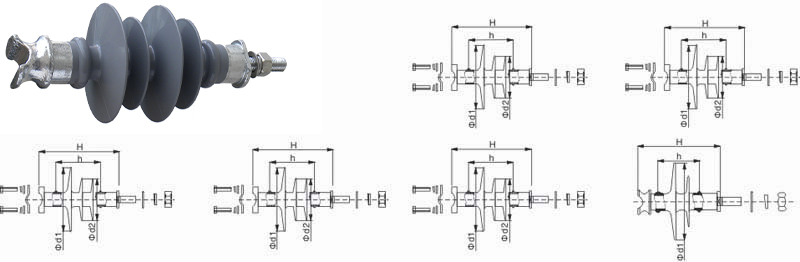

※ 10kV (1kV) Pin Type Composite Insulator Diagram

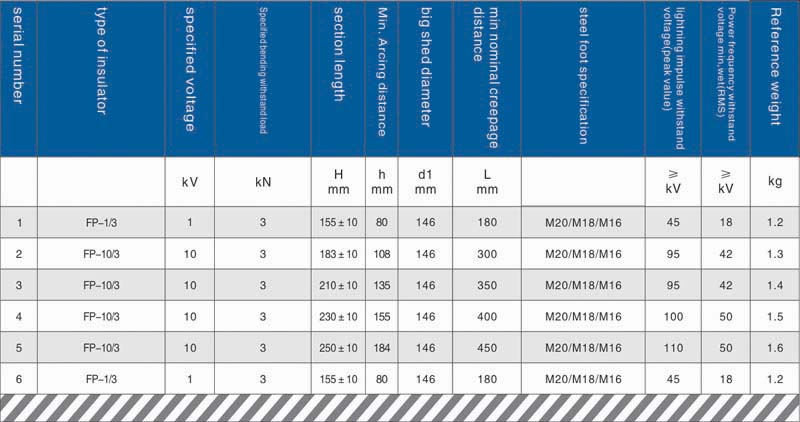

※The main technical parameters

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements .
