Description
The 10KV and 35KV thermal shrinkable busbar protective bushing is an advanced insulating solution designed for high voltage applications. Constructed from radiation cross-linked polyolefin, this continuous tube provides outstanding insulation performance and durability. Ideal for use with electrical bus bars rated up to 36KV, it effectively insulates rectangular, square, and round bus bars, inline bolted connections of bus bars, and various switchgear configurations. Its features make it suitable for copper and aluminum bus bars in metal-clad switchgear, metal-enclosed bus bars, and substation switchgear.
Features:

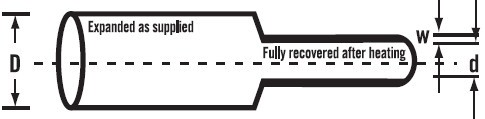

- Shrink ratio: 2:1
- Tracking resistant, low smoke emission, high strength, flexible, and flame retardant
- Minimum shrink temperature: ≥84 °C
- Minimum full recovery temperature: ≥120 °C
- Continuous operating temperature: -55～125 °C
- RoHS compliant

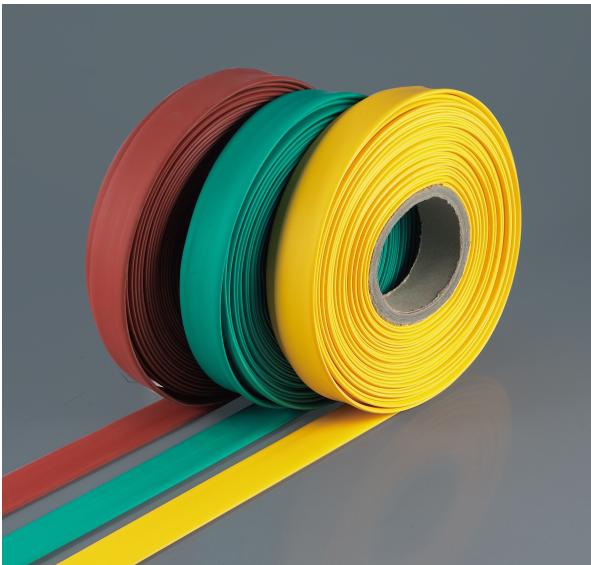

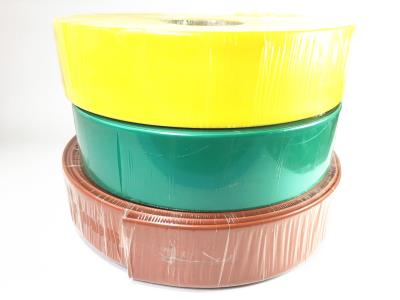

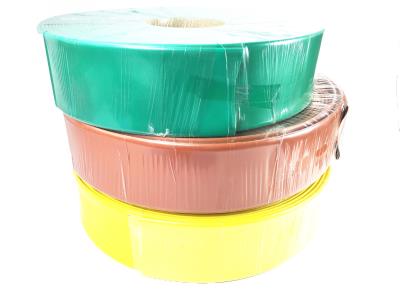

- Standard package colors: Black, White, Red, Yellow, Green, Blue; additional colors available upon request
Specifications
| Property | Typical Data | Test Method |
|---|---|---|
| Tensile strength | ≥8.0 MPa | ASTM D 2671 |
| Elongation at break | ≥300% | ASTM D 2671 |
| Tensile strength after heat ageing | ≥6.9 MPa | 130℃×168h |
| Elongation after heat ageing | ≥100% | 130℃×168h |
| Longitudinal change | -8%～+8% | ASTM D 2671 |
| Flammability (Oxygen index) | ≥28 | GB/T 2406 |
| Heat Shock | No cracking | JB 7829 supplement D |
| Dielectric Strength | ≥20 kV/mm | ASTM D 149 |
| Shore A Hardness | ≤90 | GB2411 |
| Volume resistivity | ≥1014 Ω.cm | IEC 60093 |
Additional Information
High-strength cartons ensure protection during long-distance export transport. This product is designed for optimal performance in various environmental conditions, making it an excellent choice for industrial applications.
