※ Technical Characteristics:
– Light weight, small volume, it can be easily transported and installed
– High mechanical strength
– Good performance of anti-pollution
– Free of maintenance

※ Application: (10kv-post-composite-insulator)

HV transmission lines, suitable for polluted areas

Variety scope: 10kV
Specified mechanical load: 6kN
Color: Red, Gray, Blue, Yellow or according to customer’s requirement.
Executive Standard:GB/T 19519-2014 IEC 61109

※ Structure:

Be made of , core rod, and end fitting,

※ Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

※ The Diagram of 10kV Post Composite Insulator

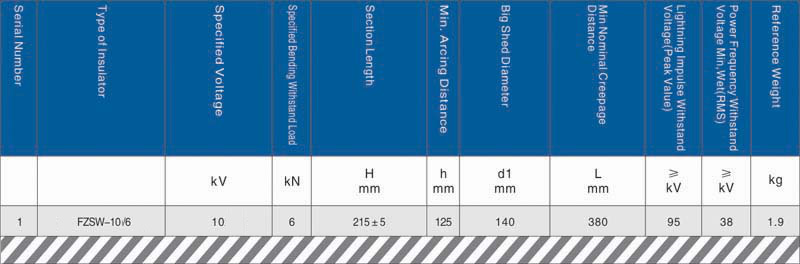

※The main technical parameters

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements .
