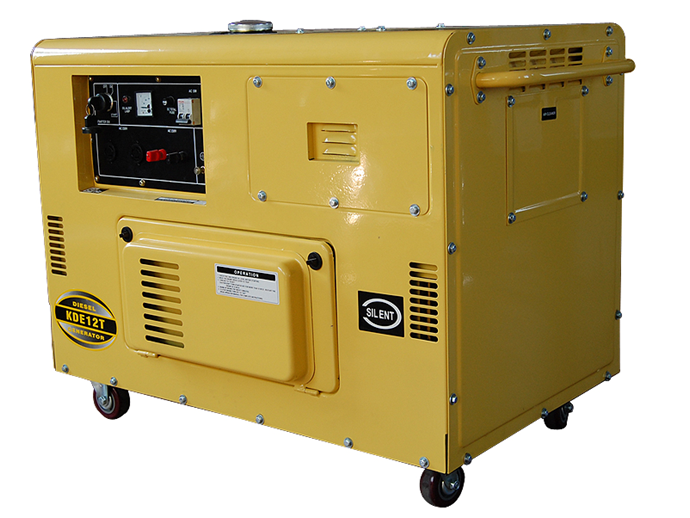

10KW 5.5KW Open type Diesel Generator Set KDE12T
Inquire NowDescription
Introducing the 10KW 5.5KW Open Type Diesel Generator Set KDE12T, a powerful and efficient solution for your energy needs. Designed for both home and professional use, this generator set ensures reliable performance with its robust engine and advanced technology. With a maximum power output of 6 KVA and versatile voltage options, it is well-suited for a wide range of applications. The open-frame structure allows for easy maintenance and accessibility, making it a practical choice for those in need of dependable power supply.
Specifications
| Attribute | Value |
|---|---|
| Model | KDE6700E |
| Frequency (Hz) | 50 / 60 |
| Output power (KVA) | 5 / 5.5 |
| Max. Power (KVA) | 5.5 / 6 |
| Voltage (V) | 115/230 / 120/240 |
| Current (A) | 43.5/21.7 / 45.8/22.9 |
| Engine speed (r/min) | 3000 / 3600 |
| Phase | Single |
| Power factor (cosφ) | 1 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 77 |
| Fuel tank capacity (L) | 12.5 |
| Structure | Open-frame |
| Panel | Ordinary |
| Output socket | Two |
| DC 12V output | Terminal post |
| Engine Model | KA188FE |
| Bore*stroke (mm) | 88 * 75 |
| Displacement (L) | 0.456 |
| Rate Power (KW) | 7/3000 / 7.5/3600 |
| Fuel consumption rate (g. KW/h) | 275.1 / 281.5 |
| Compression ratio | 19 |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity (V-AH) | 12V-36Ah |
| Gross weight (KG) | 115 |
| Dimension (L*W*H) | 760×515×710 |
| We may update the specifications without notice. | |
Additional Information
- This generator set is ideal for remote locations or emergency power needs.
- Regular maintenance is recommended to ensure optimal performance.
