110kv 121kv 132kv 220kv Oil-Immersed High Voltage Power Transformer
Inquire NowDescription
The 110kV, 121kV, 132kV, and 220kV Oil-Immersed High Voltage Power Transformer is engineered for reliability and efficiency in power distribution. This transformer is designed with advanced technology to ensure optimal performance in high voltage applications. It features a robust oil-immersed design, providing excellent insulation and cooling properties, which are essential for maintaining operational stability and longevity. The transformer is available in various capacities to meet diverse energy demands, making it an ideal solution for utilities and industrial applications.

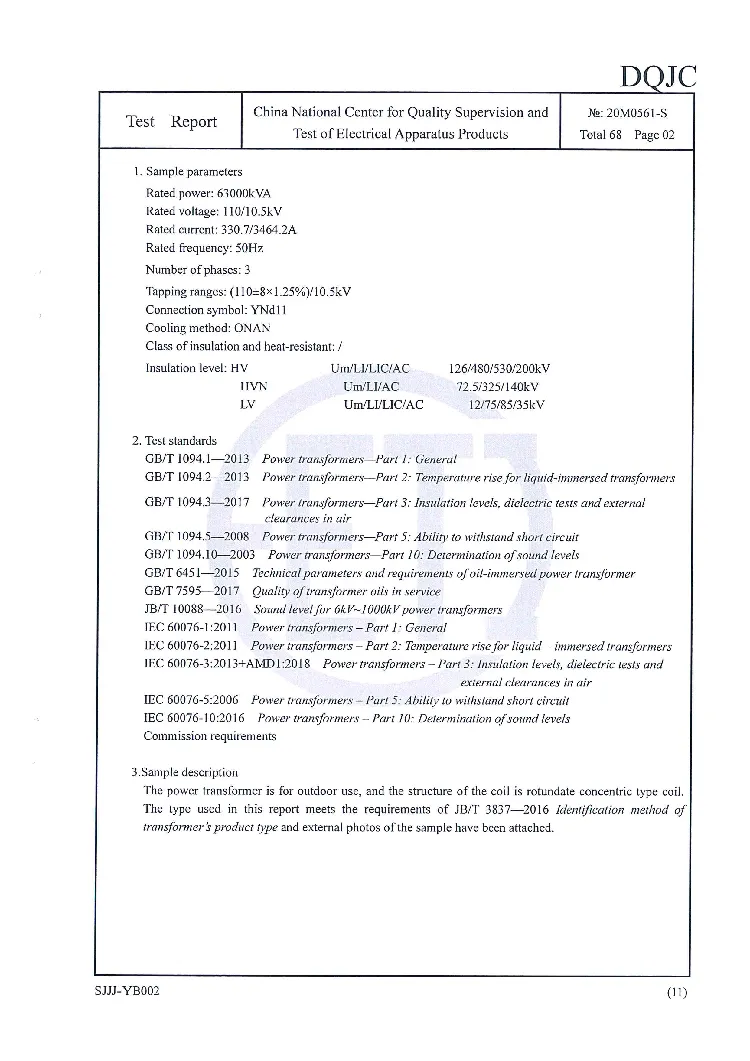

Specifications
| S/N | Symbol | Meaning |
|---|---|---|
| 1 | S | Three phases |
| 2 | F | Air-cooling |
| 3 | S | Three windings |
| 4 | Z | On load tap changing |
| 5 | 11 | Symbol of Performance level (11,13) |
| 6 | xxx | Rated capacity, kVA |
| 7 | xx | Voltage grade of HV winding, kV |
| Capacity (kVA) | Voltage Ratio & Tapping Range | Vector Group | No Load Loss | Load Loss | No Load Current | Impedance |
|---|---|---|---|---|---|---|
| 6300 | 110 | YNd11 | 7.4 | 35 | 0.62 | 10.5 |
| 8000 | 115 | YNd11 | 8.9 | 42 | 0.62 | 10.5 |
| 10000 | 121 | YNd11 | 10.5 | 50 | 0.58 | 10.5 |
| 12500 | ±2X2.5% | YNd11 | 12.4 | 59 | 0.58 | 10.5 |
| 16000 | ±2X2.5% | YNd11 | 15.0 | 73 | 0.54 | 10.5 |
| 20000 | ±2X2.5% | YNd11 | 17.6 | 88 | 0.54 | 10.5 |
| 25000 | ±2X2.5% | YNd11 | 20.8 | 104 | 0.5 | 10.5 |
| 31500 | ±2X2.5% | YNd11 | 24.6 | 123 | 0.48 | 10.5 |
| 40000 | ±2X2.5% | YNd11 | 29.4 | 148 | 0.45 | 10.5 |
| 50000 | ±2X2.5% | YNd11 | 35.2 | 175 | 0.42 | 10.5 |
| 63000 | ±2X2.5% | YNd11 | 41.6 | 208 | 0.38 | 10.5 |
| 90000 | ±2X2.5% | YNd11 | 54.4 | 272 | 0.8 | 12-14 |
Additional Information
For optimal performance, ensure regular maintenance and adhere to operational guidelines. The transformer is designed to withstand demanding environments, but proper care will enhance its lifespan and reliability.
