11kV Composite Long Rod Suspension Type Insulator
Inquire NowDescription
The 11kV Composite Long Rod Suspension Type Insulator is a state-of-the-art solution designed for high voltage transmission lines, particularly in polluted areas. This innovative insulator is recognized for its lightweight and compact design, facilitating easy transportation and installation. With exceptional mechanical strength and outstanding anti-pollution performance, it requires no maintenance, making it an ideal choice for long-term use. Available in a variety of colors such as Red, Gray, Blue, and Yellow, it can also be customized according to customer requirements.

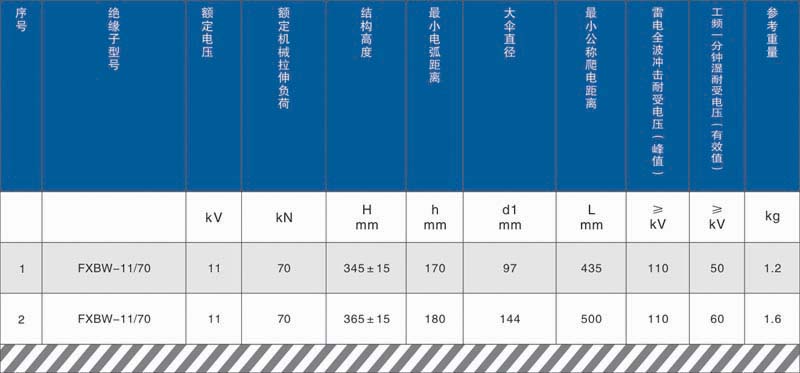

Specifications
| Attribute | Details |
|---|---|
| Voltage Range | 11kV |
| Specified Mechanical Load | 10kN, 70kN |
| Color Options | Red, Gray, Blue, Yellow, Custom |
| Executive Standard | GB/T 19519-2014, IEC 61109 |

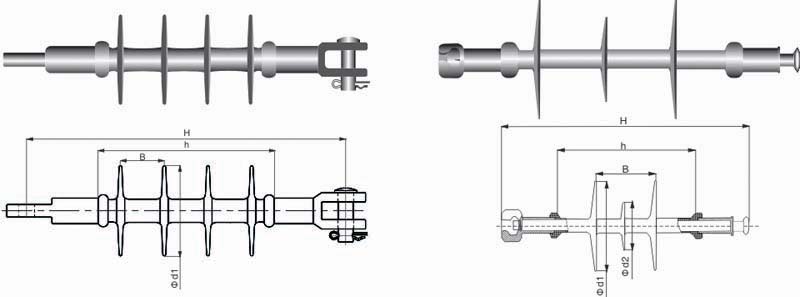

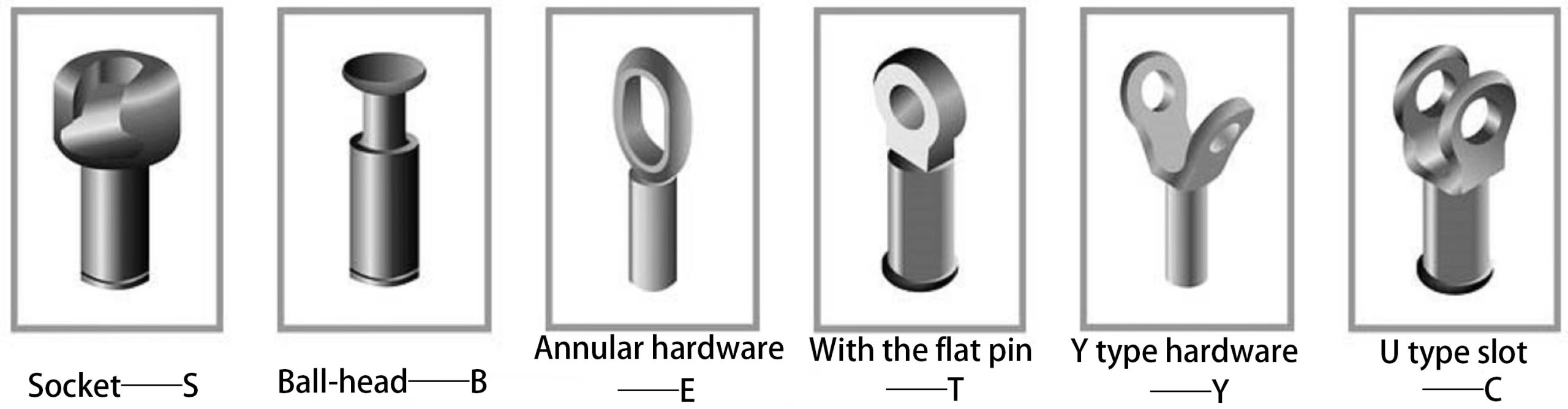

| Structure | Silicone housing, core rod, end fitting, usually with grading ring for voltages above 110kV |
| Manufacturing Process | Complete injection technology for enhanced insulation performance |
Additional Information
- Application: Suitable for high voltage transmission lines in polluted environments.
- Maintenance: Free of maintenance, ensuring longevity and reliability.
