11Ton Telescopic Crane Loader Forklift
Inquire NowDescription
The HNT-110 Telescopic Crane Loader is a versatile and powerful lifting machine designed to meet the challenges of modern material handling. Featuring a robust front-wheel drive chassis with rear-wheel steering and rigid suspension, this crane loader is equipped with a hydro-mechanical transmission that offers two-speed forward and reverse capabilities. Its full hydraulic power steering allows for precise maneuverability, while the air-over-oil type drum brake ensures safe operation.

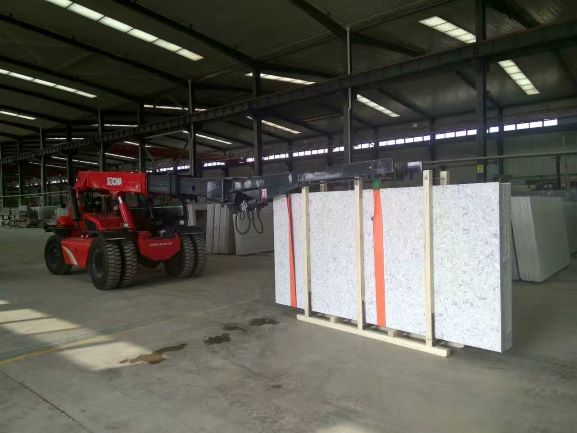

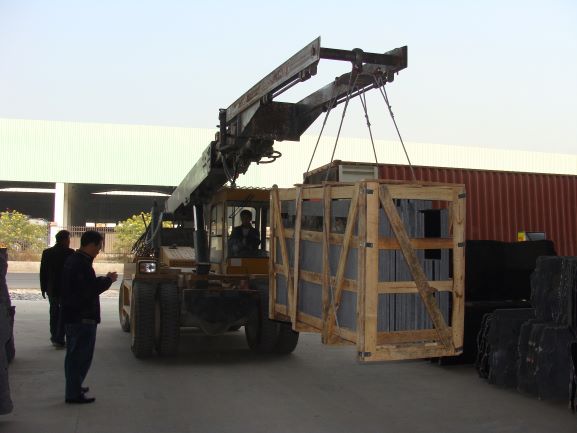

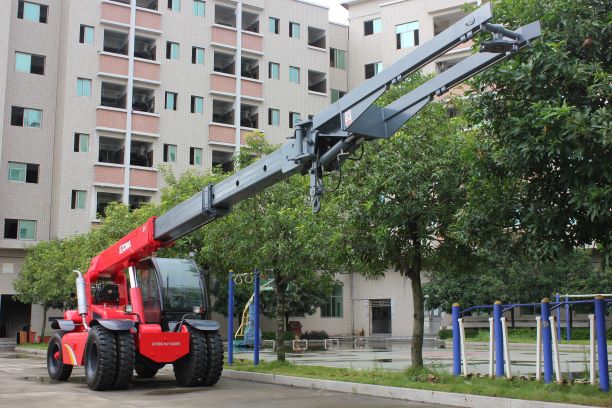

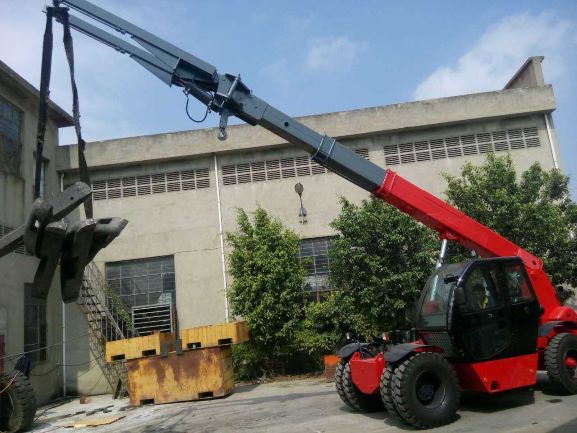

This machine boasts a three-stage quadrilateral telescopic boom, allowing for impressive lifting heights and quick-change capabilities. It excels in various settings, such as factories, docks, freight yards, construction sites, and logistics centers. The HNT-110 is an efficient and adaptable loading and unloading solution, ideal for lifting stone slabs in containers and functioning as a general crane across multiple industries.

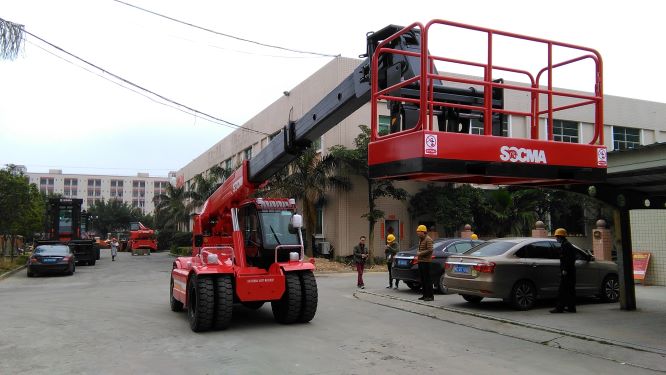

The crane loader is outfitted with a range of innovative features, ensuring exceptional performance and user comfort. With options for forks, buckets, and aerial work platforms, it is configurable to meet diverse operational needs.
Specifications
| Item | Parameter | Remark |
|---|---|---|
| Rated load | ≤11000 kg | |
| Operating weight | 13000 kg | |
| Main hook max. lifting height | 7605 mm | (from main hook to the ground) |
| Max. lifting height with full extended boom | 10300 mm | (front hook) |
| Wheel base | 2988 mm | |
| Front wheel tread | 1638 mm | |
| Rear wheel tread | 1785 mm | |
| Min. ground clearance | 310 mm | |
| Overall length | 5288 mm | (without arm) |
| Overall width | 2350 mm | |
| Overall height | 2715 mm | |
| Rear overhang length | 1055 mm | |
| Main hook max. horizontal reach | 4800 mm | (Horizontal) |
| Maximum reach of full arm | 7900 mm | (Horizontal) |
| Arm turning angle up/down | 22°/24° | |
| Boom turning angle up/down | 14°/43° | |
| Min. turning radius | 6800 mm | |
| Max. grade ability | ≥20% | |
| Max. travelling speed | 25 km/h | |
| Front wheel | 11.00-20 | |
| Rear wheel | 9.00-20 | |
| Engine | 4BT3.9-C100 (74KW, 2200R) | DCEC Cummins |
| Chassis | / | SOCMA |
| Pump | / | Hefei Changyuan |
| Driving axle Front | / | Xuzhou |
| Rear | / | SOCMA |
| Transmission | / | ZHONGNAN |
| Multi-way valve | / | LINGHAI |
| Working oil pump | / | Hefei Changyuan |
| Steering gear | / | Zhenjiang hydraulic |
Additional Information
This crane loader features a luxurious, spacious cabin designed for comfort and low noise, ensuring operators can work efficiently. The machine is equipped with maintenance-free batteries and includes a fan, radio, and air conditioning for added convenience.
Its innovative electronic handbrake and off-axle functions enhance operability while reducing tire wear. Parts are easily accessible and standardized, promoting cost-effectiveness and simplifying maintenance.
