11Ton Telescopic Crane Loader Forklift
Inquire NowDescription
The HNT-110 Telescopic Crane Loader is an advanced, versatile loading and unloading machine designed for high efficiency and adaptability across various industries. This robust crane loader features a front-wheel drive chassis with rear-wheel steering and rigid suspension, ensuring optimal maneuverability and stability. Powered by a renowned diesel engine, this unit is engineered for powerful performance while being environmentally friendly.

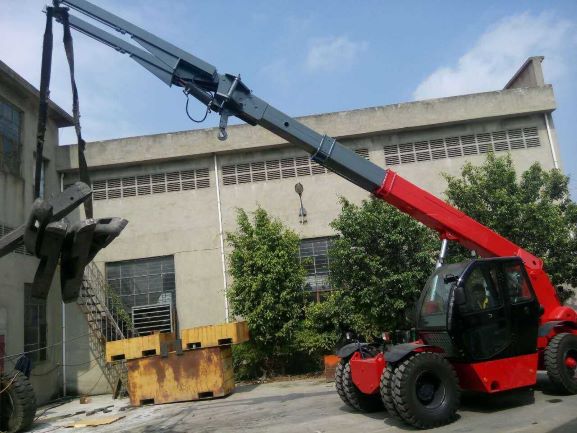

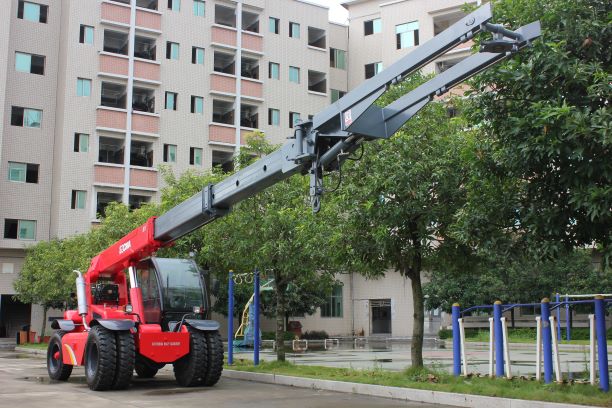

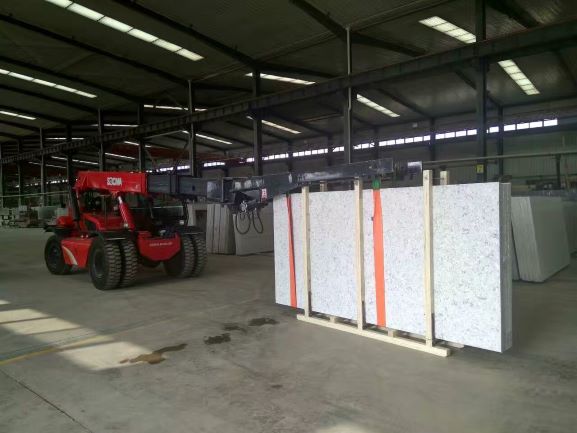

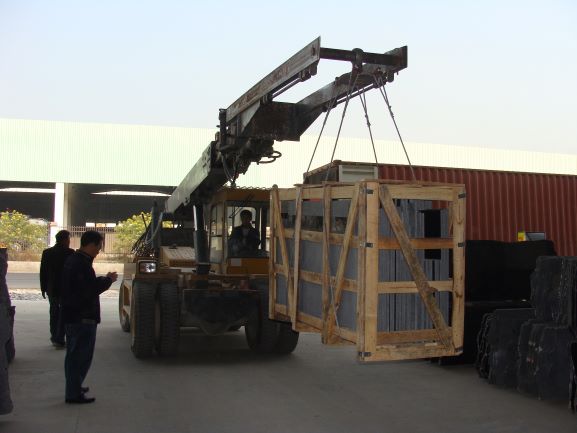

Equipped with a hydro-mechanical transmission offering two-speed forward and reverse capabilities, the HNT-110 provides users with enhanced operational flexibility. The full hydraulic power steering and air-over-oil drum brake system guarantee precise control and safety during operations. Its three-stage quadrilateral telescopic boom, complemented by a quick-change device and hook, allows for lifting stone slabs, general crane tasks, and various applications in factories, docks, construction sites, and more.
This crane loader also showcases numerous features including a dual-pump hydraulic system for energy efficiency, a compact turning radius for tight spaces, and a comfortable cabin equipped with modern amenities. Whether lifting, stacking, or maintaining equipment, the HNT-110 is built to meet the demands of diverse working conditions with reliability and ease.
Specifications
| Item | Parameter | Remark |
|---|---|---|
| Rated load | ≤11000 kg | |
| Operating weight | 13000 kg | |
| Main hook max. lifting height | 7605 mm | (from main hook to the ground) |
| Max. lifting height with fully extended boom | 10300 mm | (front hook) |
| Wheel base | 2988 mm | |
| Front wheel tread | 1638 mm | |
| Rear wheel tread | 1785 mm | |
| Min. ground clearance | 310 mm | |
| Overall length | 5288 mm | (without arm) |
| Overall width | 2350 mm | |
| Overall height | 2715 mm | |
| Rear overhang length | 1055 mm | |
| Main hook max. horizontal reach | 4800 mm | (Horizontal) |
| Maximum reach of full arm | 7900 mm | (Horizontal) |
| Arm turning angle up/down | 22°/24° | |
| Boom turning angle up/down | 14°/43° | |
| Min. turning radius | 6800 mm | |
| Max. grade ability | ≥20% | |
| Max. travelling speed | 25 km/h | |
| Front wheel | 11.00-20 | |
| Rear wheel | 9.00-20 | |
| Name | Model | Manufacturer |
| Engine | 4BT3.9-C100 (74KW, 2200R) | DCEC Cummins |
| Chassis | / | SOCMA |
| Motor | / | |
| Pump | / | Hefei Changyuan |
| Driving axle Front | / | Xuzhou |
| Rear | / | SOCMA |
| Transmission | / | ZHONGNAN |
| Multi-way valve | / | LINGHAI |
| Working oil pump | / | Hefei Changyuan |
| Steering gear | / | Zhenjiang hydraulic |
Additional Information
- Features advanced ergonomic design for operator comfort.

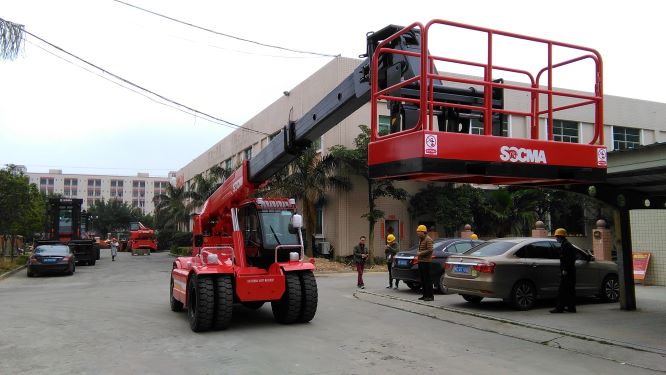

- Standard with forks, bucket, extension forks, and optional aerial work platform.
- Maintenance-free battery and climate control features enhance usability.
