12 Ton 16 Ton 20 Ton 25 Ton Electric Heavy Forklift Truck Ton

Inquire Now

Description

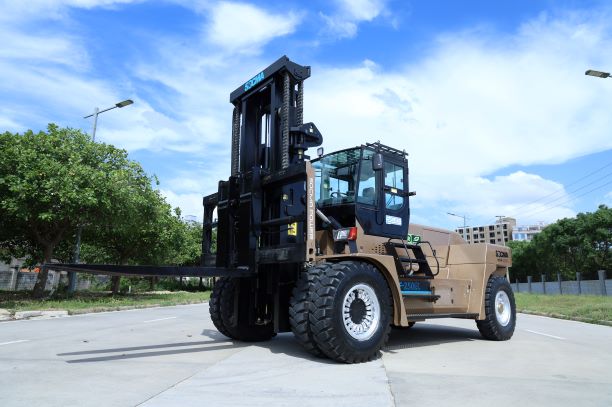

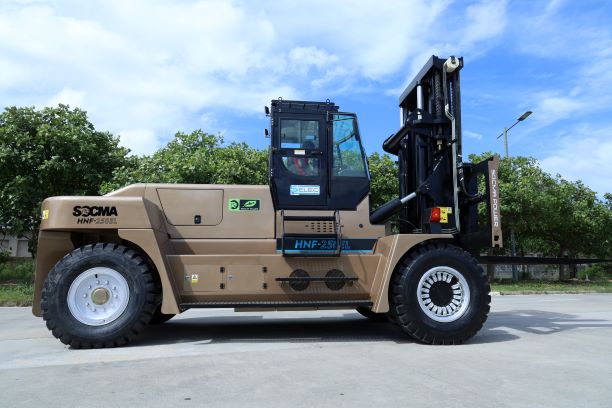

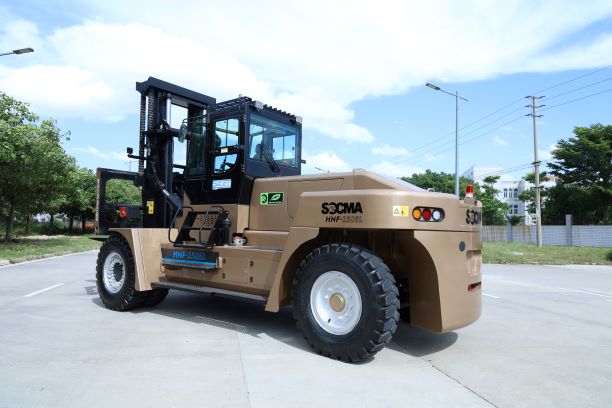

The SOCMA Electric Heavy Forklift Truck is engineered for optimal performance in demanding environments. Available in 12, 16, 20, and 25-ton capacities, this electric forklift is designed to meet the rigorous challenges of material handling while ensuring sustainability. With an impressive IP67 waterproof rating, it excels in rainy conditions and is easy to clean. The low operational cost, with energy consumption at approximately 30% of traditional forklifts, enhances its efficiency.

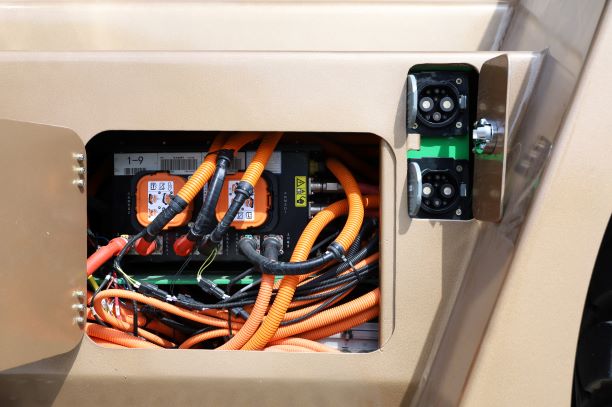

This forklift features a dual international charging interface supporting both fast and constant current charging options, tailored to various charging specifications. Its advanced permanent magnet synchronous motors, coupled with coordinated control technology, ensure efficient energy management and excellent overload matching. The forklift operates with zero emissions, contributing to a cleaner environment, and operates quietly, making it suitable for sensitive environments.

Maintenance is straightforward and economical, benefiting from a high-voltage and high-power system that significantly improves full-load travel speed, lift speed, and gradeability compared to internal combustion trucks. The high-capacity LFP battery guarantees extended operation for over 8 hours on a full charge, with a lifecycle of over 4000 cycles or more than 8 years.

Specifications

Technical Parameter 12 Ton 16 Ton 20 Ton 25 Ton
Manufacturer SCOMA SCOMA SCOMA SCOMA
Type Designation HNF120-EL HNF160-EL HNF200-EL HNF250-EL
Drive Battery Battery Battery Battery
Operator Type Seated Seated Seated Seated
Rated Capacity 12000 kg 16000 kg 20000 kg 25000 kg
Weight 18000 kg 25000 kg 32500 kg 35000 kg
Lift Height 3000 mm 3500 mm 3500 mm 3500 mm
Travel Speed (Laden/Unladen) 23 / 26 km/h 26 / 30 km/h 26 / 30 km/h 25 / 29 km/h
Battery Cycle Life >4000 cycles / >8 years

Additional Information

  • Zero emissions and low noise operation.
  • High-capacity LFP battery for prolonged usage.
  • Easy maintenance and inspection, reducing downtime.
