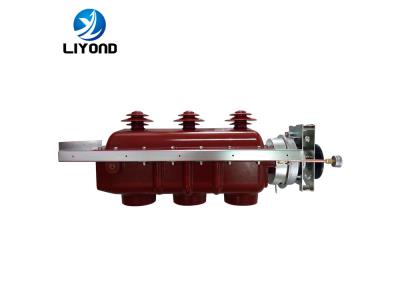

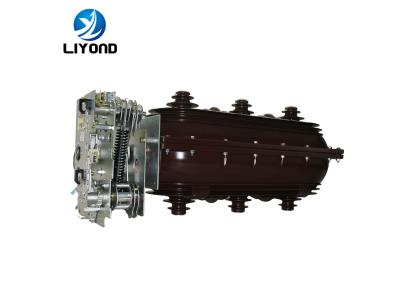

12KV 24KV 630A Indoor SF6 Load Break Switch for high voltage electrical equipment
Inquire NowDescription
The 12KV 24KV 630A Indoor SF6 Load Break Switch is a premier solution designed for high voltage electrical equipment. Utilizing SF6 gas for both arc extinguishing and insulation, this switch features three operational states: opening, closing, and grounding. Its compact design allows for easy installation and usability, while its robust environmental adaptability ensures reliable performance in various conditions.
This switch is particularly suitable for protecting and controlling electrical equipment in power supply and transformer substations. It works effectively in cable branch cabinets and distribution switching substations. The FLN36-12 load break switch meets rigorous standards, including IEC420, 694, 129 and national standards GB3804-2004 and GB1985-2004, ensuring compliance and quality. This versatile switch serves as a primary switching element in Ring Main Units (RMUs).
Designed with a fully sealed structure filled with SF6 gas and epoxy resin, the switch achieves its multifunctionality while ensuring maintenance-free operation for over 20 years under normal conditions. Key features include a double fracture, rotary movable contact structure, enhanced safety mechanisms, and compact packaging, making it an ideal choice for modern electrical systems.
Specifications
| Property | Details |
|---|---|
| Type | Indoor SF6 Load Break Switch |
| Voltage Rating | 12KV / 24KV |
| Current Rating | 630A |
| Standards Compliance | IEC420, GB3804-2004, GB1985-2004 |
| Material | SF6 gas encapsulated in epoxy resin housing |
| Maintenance | Maintenance-free for over 20 years |
| Operational States | Opening, Closing, Grounding |
| Safety Features | Internal arcing protection with pressure relief |
| Dimensions | Compact Design (specific dimensions not provided) |
Additional Information
- Easy and safe to operate.
- Lightweight for convenient installation.
- Compact structure enhances reliability and security.
