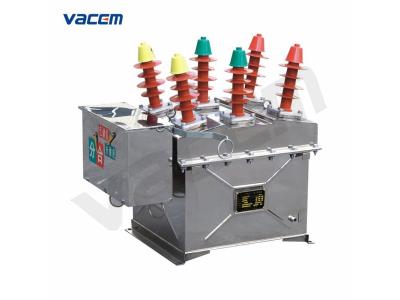

12kv Outdoor High Voltage Vacuum Circuit Breaker on Pole (ZW8)
Inquire NowDescription
The ZW8-12 series vacuum circuit breaker is a high-voltage outdoor switch designed for reliable operation in various electrical networks. With a rated voltage of 12kV and a tri-phase AC frequency of 50Hz, this circuit breaker is essential for safely making and breaking load currents, over-current, and short-circuit currents in rural and urban power distribution systems, as well as miniature power setups.
Constructed with a tri-phase co-box design, it features a tri-phase vacuum explosion chamber encased in a robust metal box. Its performance is reliable, complemented by a strong insulation level achieved through the use of SMC insulation materials, ensuring effective phase-to-phase and earth insulation.
The ZW8-12G model combines the ZW8-12 circuit breaker with an isolation blade, serving as a breaking switch. Its VCT23 spring-loaded operation mechanism offers both motorized and manual operation options for enhanced flexibility. Additionally, this circuit breaker includes surge control functionality and is compatible with an electronic control unit, enabling remote monitoring.
Specifications
| Attribute | Description |
|---|---|
| Rated Voltage | 12kV |
| Frequency | 50Hz |
| Type | Tri-phase outdoor vacuum circuit breaker |
| Insulation Material | SMC insulation material |
| Operation Mechanism | VCT23 spring-loaded (motor and manual operation) |
| Functionality | Surge control, remote monitoring capability |
Additional Information
- Ideal for rural networks, urban networks, and miniature power systems.
- Reliable performance with strong insulation levels.
- Combines circuit breaker and isolation blade for breaking switch applications.
