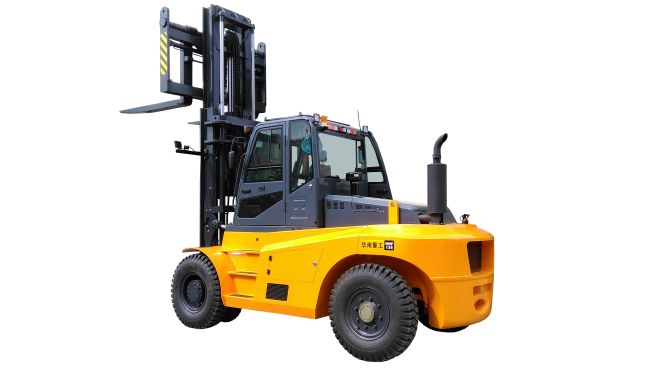

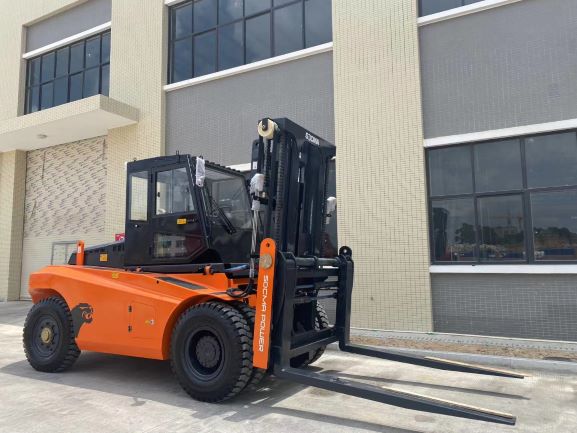

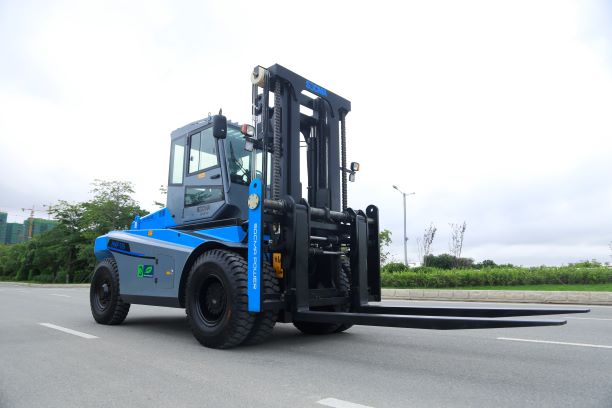

13.5 Ton Diesel Heavy Forklift Truck
Inquire Now
Heavy Duty 13.5 Ton Diesel Forklift Truck attach Telescopic Boom Crane
Engine: low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection.
Steering system: Equipped transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.

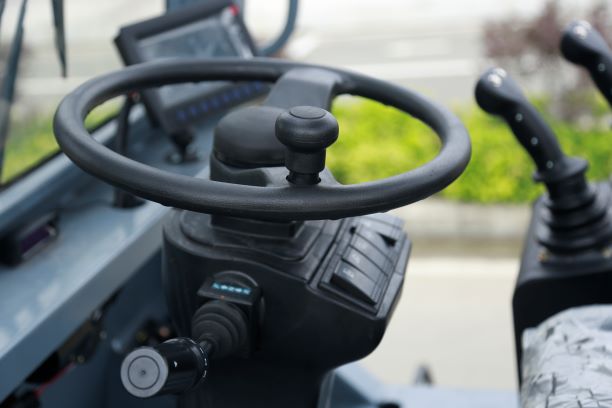

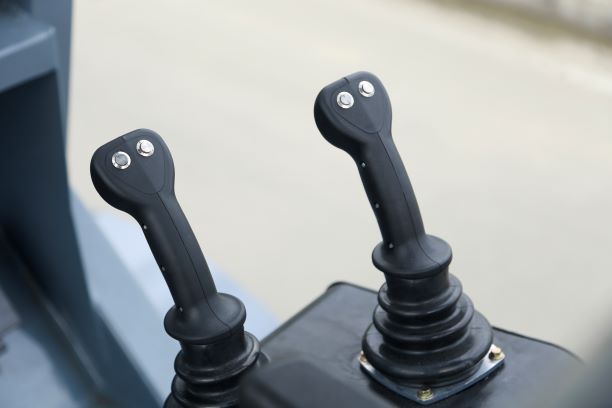

Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Cooling system: equipped independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship & firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Full cab with AC, heater and rear view display.
Parameter
| Technical Parameter | |||
| Design details | |||
| Item | HNF-135 | ||
| Features | Rated Load | Q（t） | 13.5 |
| Load center | c（mm） | 600 | |
| Wheelbase | y（mm） | 3000 | |
| Weight | Weight | kg | 19000 |
| Chassis | Tyre Specs.:Front | 11.00-20-18PR | |
| Tyre Specs.:Rear | 11.00-20-18PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 42 | ||
| Wheel tread:Front | b10（mm） | 1677 | |
| Wheel tread:Rear | b11（mm） | 2013 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 612 |
| Mast height(fork lowering) | h1（mm） | 3100 | |
| Mast lifting height | h3（mm） | 3000 | |
| Max.lifting height | h4（mm） | 4600 | |
| Height to head guard(height to cab) | h6（mm） | 3000 | |
| Overall height(with forks) | l1（mm） | 6055 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 4855 | |
| Overall width | b1/b2（mm） | 2250 | |
| Fork Dimension | s/e（mm） | 1200X180X90 | |
| Fork carriage width | b3（mm） | 2200 | |
| Mast min ground clearance(with load) | m1（mm） | 225 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 350 | |
| Min.Turning radius | Wa（mm） | 4450 | |
| Travel speed(with load/without load) | km/h | 23/26 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 220/270 |
| Max.Lowering speed(with load/without load) | mm/s | 450/300 | |
| Traction | kN | 90 | |
| Grade ablity(with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Yuchai engine |
| YC6J150-T301 6.494L 110KW 2200rpm |
|||
| Optional two | Dongfeng Cummins | ||
| QSB4.5-C130 4.5L 97KW 2200rpm |
|||
| Cylinder No. | 64 | ||
| Others | Transmission gears(Front/rear) | 22 | |
| Attachments working pressure | Mpa | 16 | |
|
Attachments using oil amount |
l/min | 40 | |
