1500HP BEYOND RIG
Inquire NowDescription
The 1500HP Beyond Rig is an advanced drilling solution designed for high efficiency and mobility in the oil and gas industry. This state-of-the-art rig features a hydraulic mast and substructure that allow for quick and easy rig-up. Integrated with an automatic pipe racker and top drive system, it streamlines the drilling process.
Engineered for fast movement, the rig can be transported efficiently on tractor-trailers, with disassembled modules carried by self-loading trucks. The design minimizes transportation needs, consisting of only 7 essential modules for the derrick, substructure, crown block, travelling block, and top drive, totaling no more than 25 modules for the entire rig.
With strong mobility capabilities, the Marching Type walking device enables the rig to navigate in 8 different directions—horizontal, vertical, and ±45°. This feature is crucial for meeting the high demands of cluster drilling.
Additionally, the rig boasts high automation with various advanced tools such as hydraulic catwalks, drill floor stabilizer manipulators, and iron roughnecks. These innovations allow for automated operations, including screwing up and off single stems, laying drill pipes, and casing feed, enhancing overall efficiency and safety on the job site.

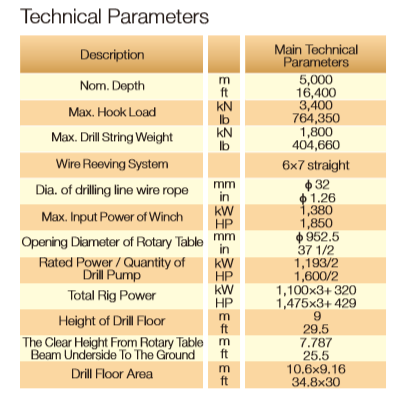

Specifications
Feature | Description |
---|---|
Rig Type | 1500HP Beyond Rig |
Rig-up Mechanism | Hydraulic cylinder for mast and substructure |
Transportation | Tractor-trailer and self-loading trucks |
Modules | 7 transportation modules for main components, 25 total modules |
Mobility | Walking device with 8 directional movements |
Automation Features | Hydraulic catwalk, drill floor stabilizer, pipe racking device, iron roughneck |
Additional Information
For optimal performance, regular maintenance and timely servicing are recommended. Ensure all automated tools are calibrated for accuracy, and follow safety protocols during operations.
