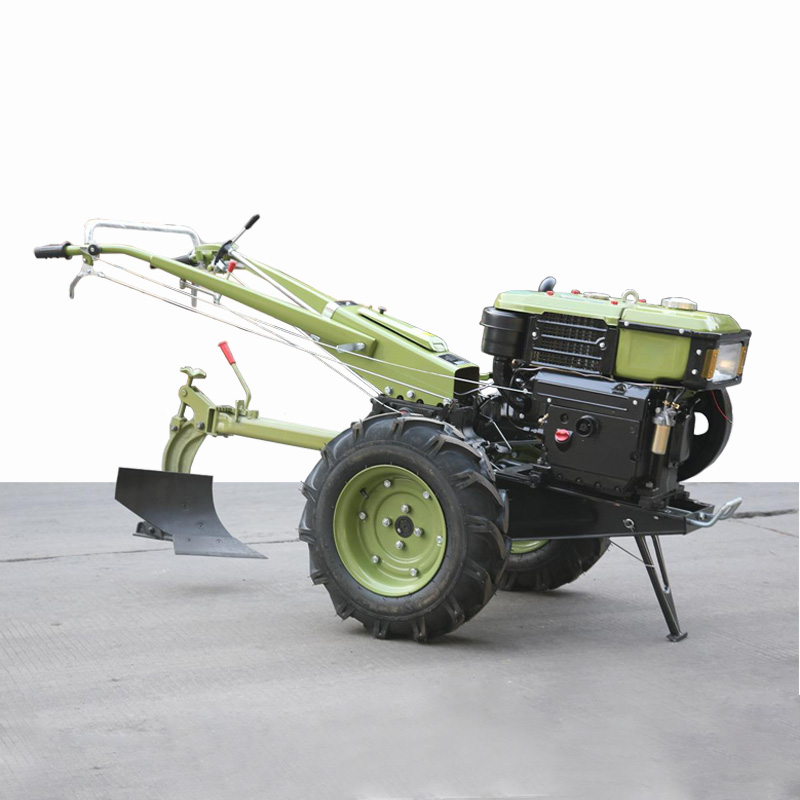

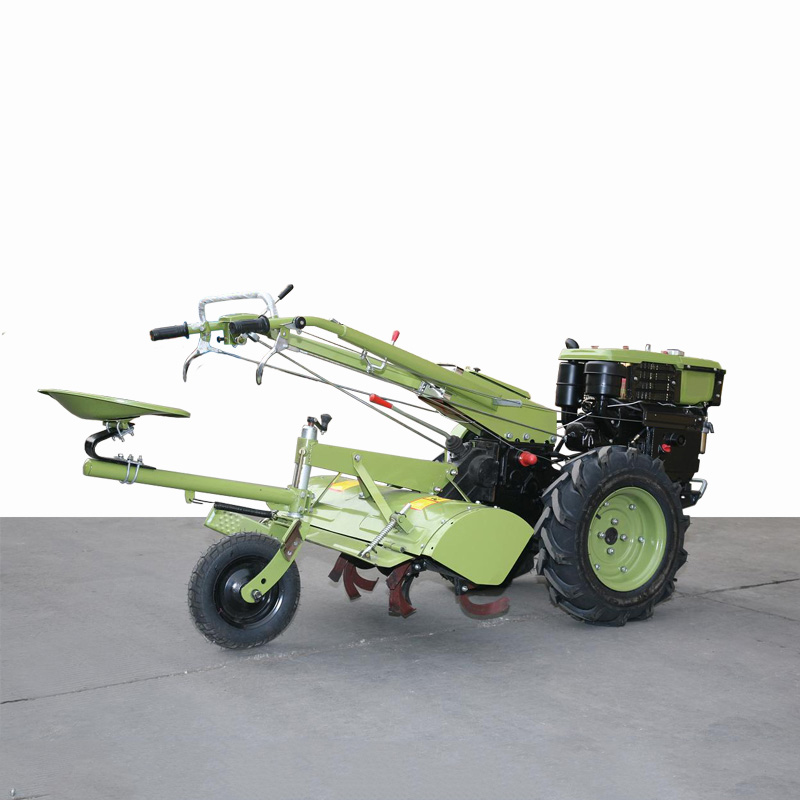

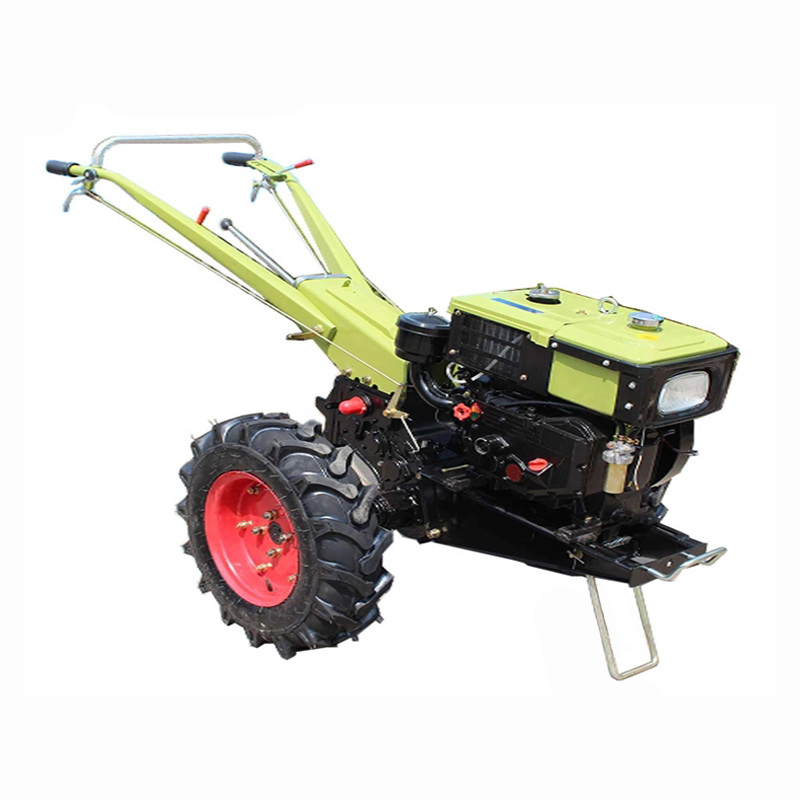

16-22HP Agricultural Diesel Walking Tractor
Inquire NowDescription
The 16-22HP Agricultural Diesel Walking Tractor is a robust and efficient machine designed for various agricultural tasks. With a powerful 13.2 kW (18 HP) engine, it is capable of handling demanding farming operations with ease. This tractor features a belt drive system that ensures smooth operation across diverse terrains. Its compact design, with overall dimensions of 2680 x 960 x 1250 mm, makes it suitable for navigating tight spaces on farms.
Equipped with a 1-cylinder, 4-stroke engine and a displacement of 0.815 L, this tractor delivers reliable performance. The gearbox includes 6 forward and 2 reverse gears, allowing for versatile speed control, with a maximum speed of 18 km/h. The tractor’s wheel tread ranges from 680 to 1000 mm, ensuring stability and traction during operation. The 6.00-16 tire model provides durability and support for various agricultural implements.
Specifications
| Main Parameters | Specification |
|---|---|
| Drive Type | Belt Drive |
| Overall Dimension | 2680 x 960 x 1250 mm |
| Wheel Tread | 680 – 1000 mm |
| Tire Model | 6.00-16 |
| Belts Model | B1750 |
| Engine Power | 13.2 kW / 18 HP |
| No. of Cylinders | 1 Cylinder, 4 Stroke |
| Displacement | 0.815 L |
| Gearbox System | 6 Forward, 2 Reverse |
| Clutch | Single Friction Plate |
| Max. Speed | 18 km/h |
