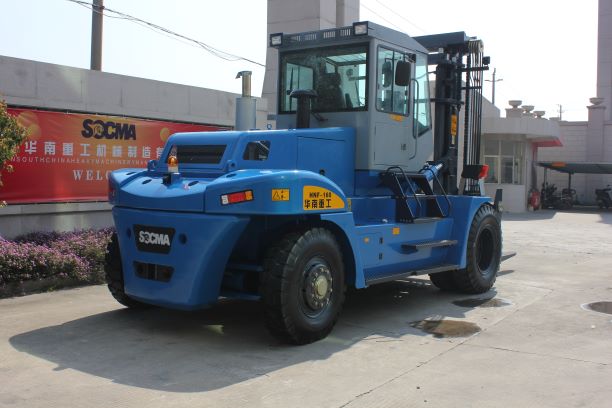

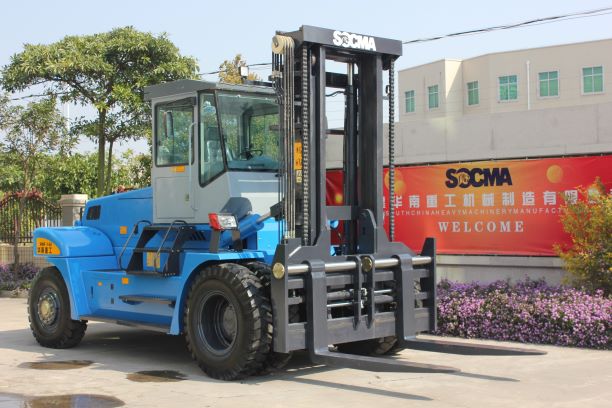

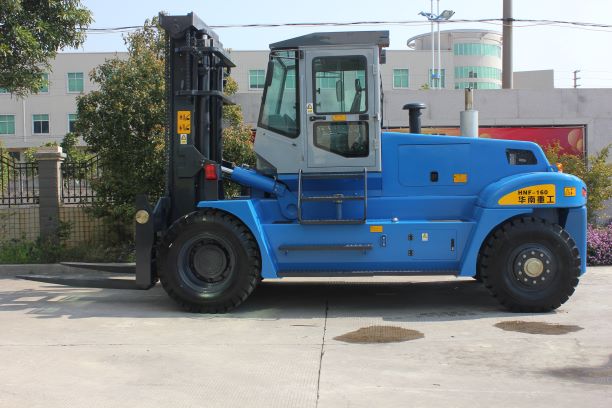

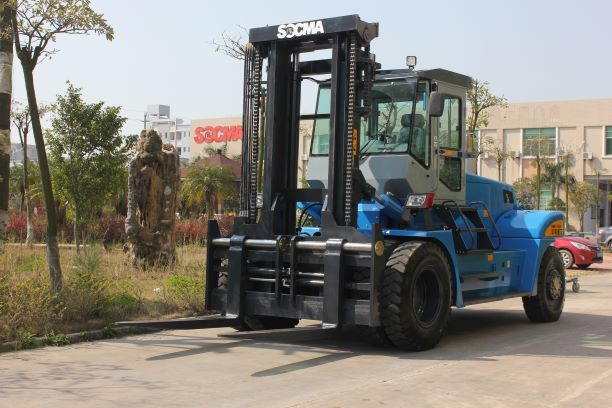

16 Ton Diesel Heavy Forklift Truck Color Blue
Inquire NowDescription
The 16 Ton Diesel Heavy Forklift Truck in a striking blue color is built for heavy-duty operations, offering exceptional power and efficiency. This robust machine boasts a turbocharged engine known for its low oil consumption and high torque reserves, ensuring outstanding performance while conserving energy and adhering to environmental standards.
Equipped with a full-hydraulic steering system that offers flexible and light maneuverability, this forklift is designed for reliability and ease of use. The transmission and torque converter utilize imported technology for smooth operation and convenient maintenance. The braking system features advanced disc brakes from a reputable manufacturer, providing rapid heat dissipation and stable braking performance under heavy loads.
The forklift incorporates a pilot valve control system to enhance work efficiency and minimize the driver’s labor intensity. Its independent cooling system for transmission and hydraulic oil guarantees maximum stability during operation. Built with an exquisite box-type frame, the forklift’s structure has been optimized through 3D finite element analysis, ensuring superior reliability and quality.
This model includes a standard hydraulic fork positioner for effortless operation, along with a box-type internal-external mast that enhances lifting capabilities. The full cab is equipped with air conditioning, heating, and a rearview display, ensuring operator comfort and safety.
Specifications
| Item | Specification |
|---|---|
| Model | HNF-160 |
| Rated Load | 16 t |
| Load Center | 900 mm |
| Wheelbase | 3800 mm |
| Weight | 25000 kg |
| Tyre Specs. Front | 12.00-24-18PR |
| Tyre Specs. Rear | 12.00-20-18PR |
| Mast Height (Fork Lowering) | 3625 mm |
| Mast Lifting Height | 3500 mm |
| Max. Lifting Height | 5375 mm |
| Overall Length (with forks) | 7640 mm |
| Overall Width | 2750 mm |
| Travel Speed (with load/without load) | 26/30 km/h |
| Max. Lifting Speed (with load/without load) | 250/260 mm/s |
| Max. Lowering Speed (with load/without load) | 430/330 mm/s |
Additional Information
- Engine Options: Yuchai YC6J175-T302 or Dongfeng Cummins QSB6.7-C190
- Transmission Gears: 21 (Front/Rear)
- Attachments Working Pressure: 16 Mpa
- Attachments Using Oil Amount: 60 l/min
