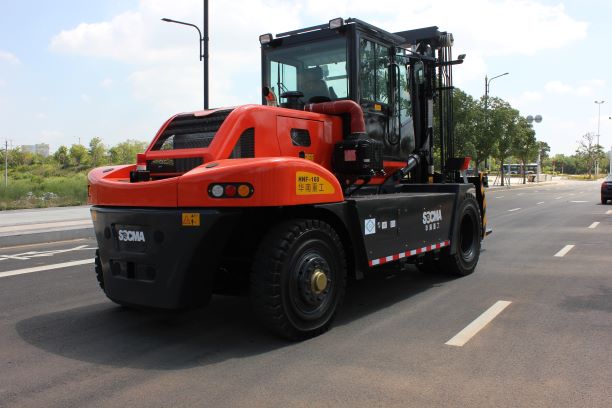

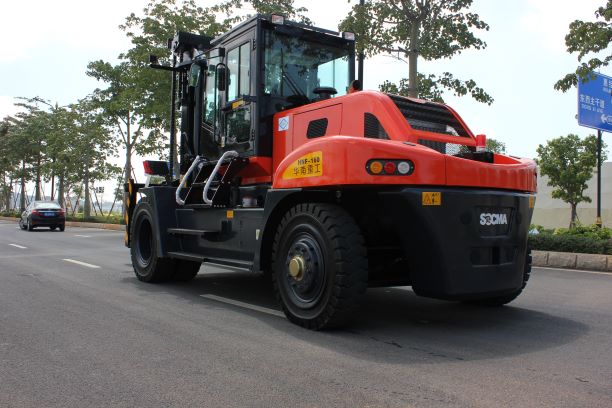

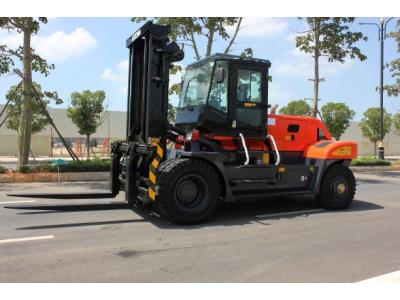

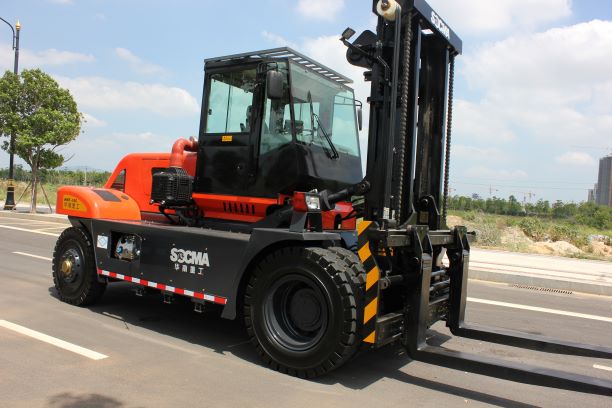

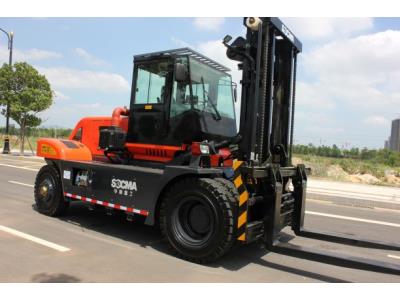

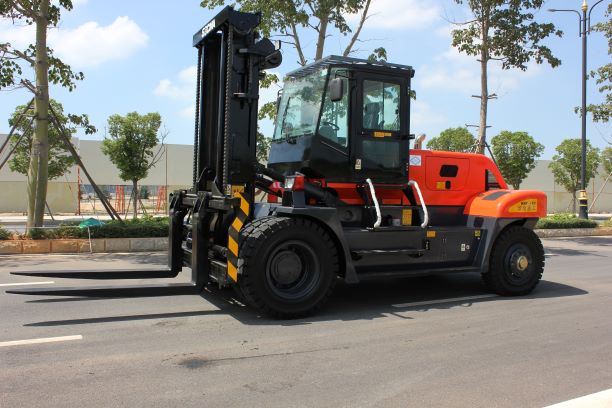

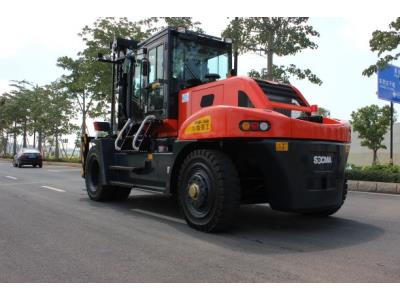

16 Ton LNG Heavy Forklift Truck
Inquire NowDescription
The Heavy Duty 16 Ton LNG Forklift Truck is engineered for exceptional performance in challenging industrial environments. Powered by a reliable LNG engine, this forklift is designed to handle heavy loads with ease. Its advanced steering system features a transverse oil cylinder type steering bridge, providing flexibility and precision in operation.
With a sophisticated transmission and torque converter, this forklift ensures smooth operation and easy maintenance. The braking system, equipped with disc brakes from reputable manufacturers, offers quick heat dissipation and stable braking performance, particularly under heavy loads. The innovative control system enhances work efficiency, reducing the driver’s labor intensity, while the independent cooling system for transmission and hydraulic oil boosts system reliability.
The forklift’s sturdy box-type frame, reinforced through 3D finite element analysis, ensures exceptional stability and durability. Standard features include a hydraulic fork positioner for easy operation, a box-type mast with all-round roller bearings for improved lifting performance, and a fully enclosed cab equipped with AC and a rear view display for enhanced comfort and safety.
Specifications
Item | Specifications |
---|---|
Rated Load | 16 t |
Load Center | 900 mm |
Wheelbase | 3800 mm |
Weight | 25000 kg |
Tyre Specs.: Front | 12.00-24-18PR |
Tyre Specs.: Rear | 12.00-20-18PR |
Mast Height (Fork Lowering) | 3625 mm |
Mast Lifting Height | 3500 mm |
Max Lifting Height | 5375 mm |
Overall Length (with forks) | 7640 mm |
Overall Width | 2750 mm |
Travel Speed (with load/without load) | 26/30 km/h |
Additional Information
- Engine Options: Yuchai engine (YC6J175-T302) or Dongfeng Cummins (QSB6.7-C190)
- Transmission Gears: 21 (front/rear)
- Hydraulic Clamp Disc Braking: Efficient braking system for enhanced safety
