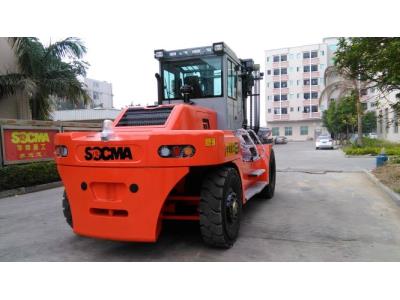

18 Ton Diesel Heavy Forklift Truck Color Red
Inquire NowDescription
Introducing the Heavy Duty 18 Ton Diesel Forklift Truck, painted in a striking red hue. This powerhouse is engineered for exceptional performance in lifting and transporting heavy loads with ease. Its turbocharged engine is designed for low oil consumption while delivering robust power and torque, ensuring energy efficiency and minimal environmental impact.
The forklift features a full-hydraulic steering system with a transverse oil cylinder type steering bridge, allowing for smooth and flexible maneuverability. Designed with reliability in mind, the transmission and torque converter utilize imported technology for easy maintenance and seamless operation.
The advanced braking system employs high-performance disc brakes, offering quick heat dissipation and stable braking even under heavy loads. It’s constructed with a strong box-type frame that enhances stability, alongside a pilot valve control that optimizes work efficiency and minimizes driver fatigue.
Additional highlights include a hydraulic fork positioner for easy operation, a box-type mast that improves lifting capabilities, and a fully enclosed cab equipped with air conditioning and heating for optimal comfort in various working conditions.
Specifications
| Technical Parameter | |||
|---|---|---|---|
| Item | Model | Rated Load (t) | 18 |
| Load Center (mm) | 900 | Wheelbase (mm) | 3800 |
| Weight (kg) | 25500 | ||
| Chassis | |||
| Tyre Specs.: Front | 12.00-24-18PR | ||
| Tyre Specs.: Rear | 12.00-20-18PR | ||
| Wheel Tread: Front (mm) | 2060 | Wheel Tread: Rear (mm) | 2330 |
| Dimension | |||
| Mast Lifting Height (mm) | 3500 | Max. Lifting Height (mm) | 5375 |
| Overall Length (with forks) (mm) | 7640 | Overall Width (mm) | 2750 |
| Performance | |||
| Max. Lifting Speed (with load) (mm/s) | 250 | Grade Ability (with load) (%) | 20 |
| Engine | |||
| Engine Brand/Model | Yuchai Engine | Power (KW) | 129 |
Additional Information
- Transmission gears: 21 (Front/Rear)
- Attachments working pressure: 16 Mpa
- Attachments using oil amount: 60 l/min
