1BQX-2.1 SERIES HANGING LIGHT DUTY DISC HARROW
Inquire NowDescription

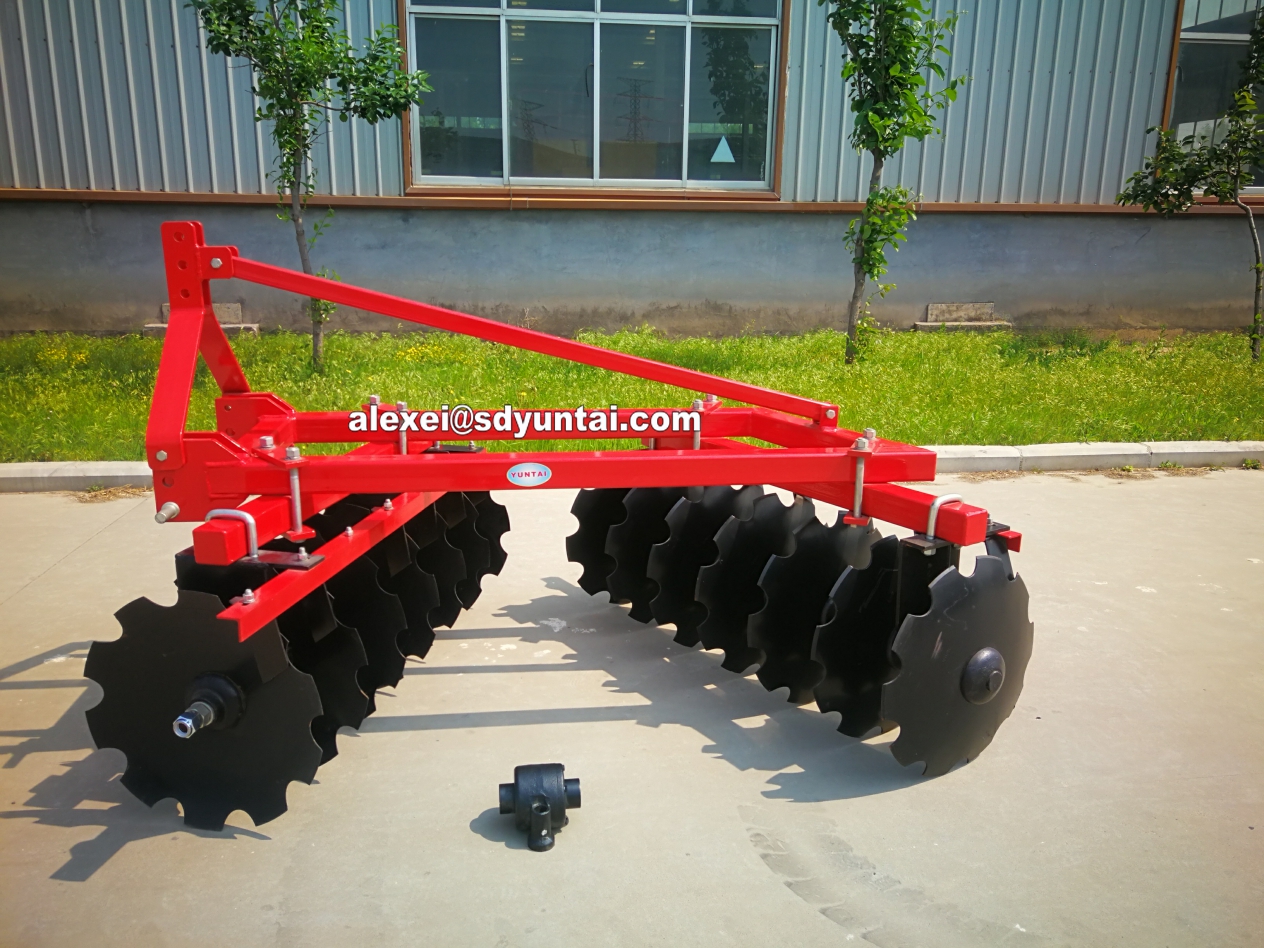

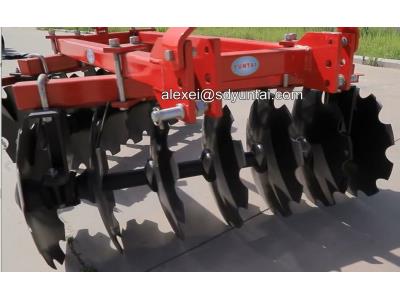

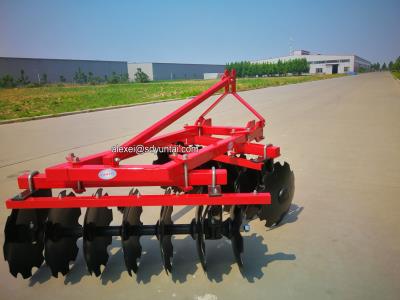

The 1BQX-2.1 Series Hanging Light Duty Disc Harrow is an essential agricultural implement designed primarily for breaking up clods in farmland and light soil. Its purpose extends to loosening and mixing soil with fertilizers before sowing, ensuring a well-prepared seedbed. This disc harrow features a reasonable structure, providing a strong raking ability that enhances its durability. With its user-friendly design and easy maintenance, this tool stands out in the field, ensuring efficient soil preparation for farmers.
Specifications
| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.1 |
|---|---|---|---|---|---|---|
| Number of disc | 12 | 14 | 16 | 18 | 20 | 22 |
| Size of disc (mm) | 460×3 | 460×3 | 460×3 | 460×3 | 460×3 | 460×3 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2100 |
| Working depth (mm) | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 |
| Weight (kg) | 200 | 220 | 256 | 270 | 310 | 326 |
| Matched tractor (hp) | 15-20 | 15-20 | 20-35 | 30-50 | 50-60 | 50-60 |
Additional Information
For optimal performance, ensure that the harrow is matched with the appropriate tractor horsepower as specified in the table above. Regular maintenance will prolong the life of the equipment and improve its efficiency in soil preparation.
