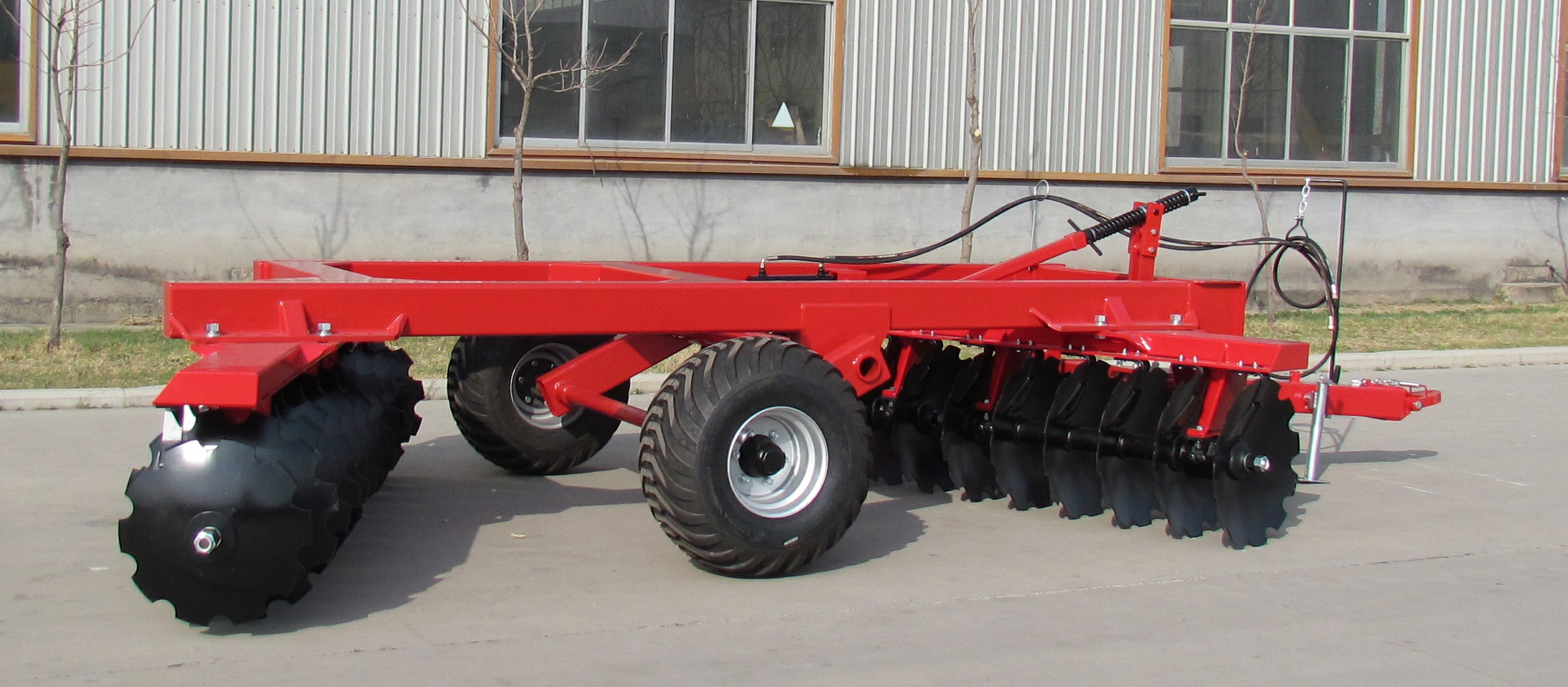

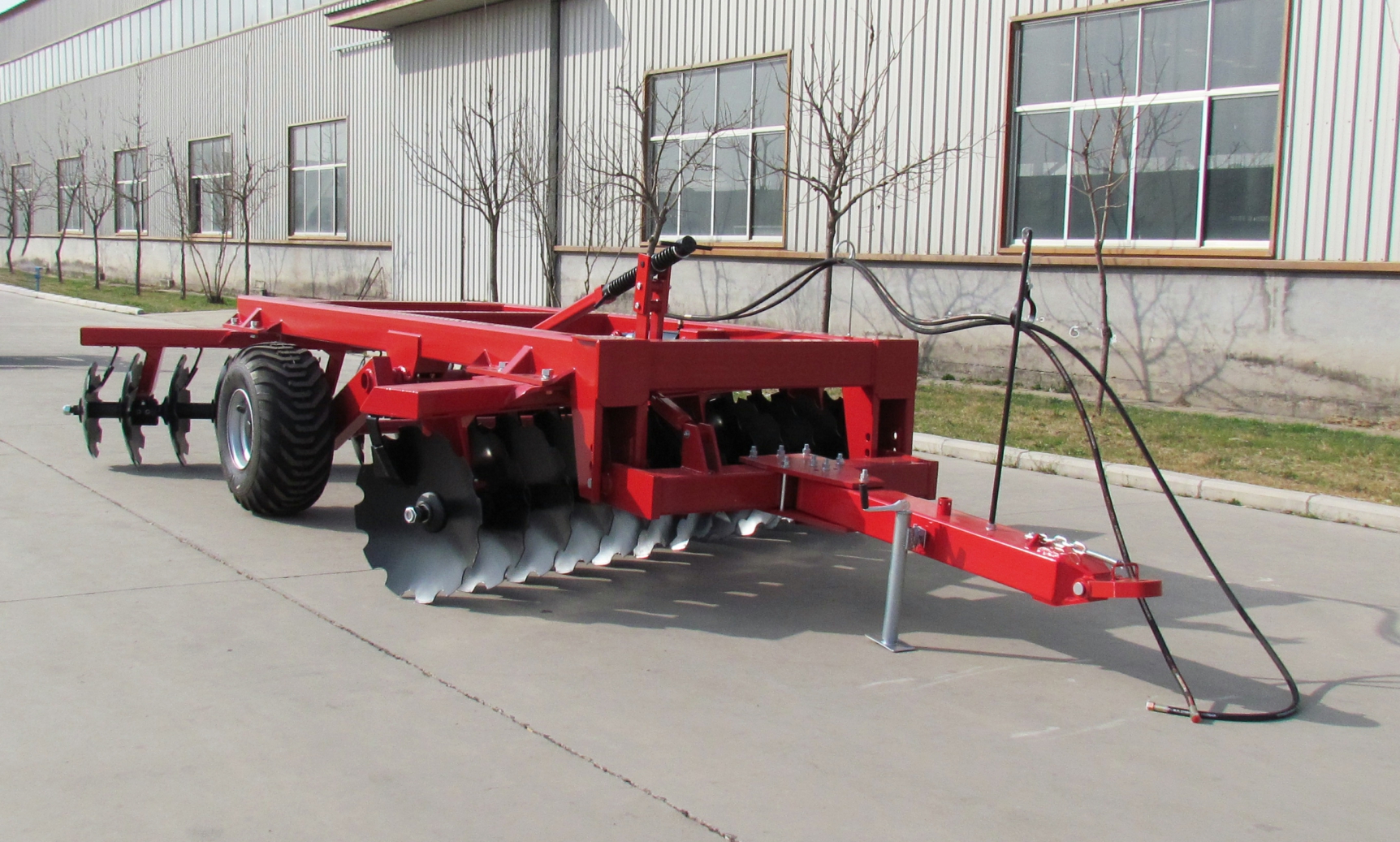

1BZX-2.0 HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW
Inquire NowDescription
The 1BZX-2.0 Hydraulic Pressure Offset Heavy Disc Harrow is designed for superior agricultural efficiency. This robust harrow showcases high harrowing capacity while ensuring optimal power utilization. Its innovative design allows for exceptional soil cutting and shattering capabilities, leveling soil surfaces and loosening soil with ease. Perfectly suited for heavy clay soil wasteland and weedy fields, the machine’s combined structure is built with a rigid frame welded from rectangular tubes. It is equipped with a hydraulic up-and-down road wheel spring leveling device, tapered roller bearings, and specialized square/round inner holes for the disc harrow, making it both easy to maneuver and simple to adjust and maintain.
Specifications
| Model | 1BZX-2.0 | 1BZX-2.2 | 1BZX-2.35 | 1BZX-2.5 | 1BZX-3.0 | 1BZX-3.5 |
|---|---|---|---|---|---|---|
| Number of Discs | 18 | 20 | 22 | 24 | 28 | 32 |
| Diameter of Disc (mm) | 660*6 | |||||
| Working Width (mm) | 2000 | 2200 | 2350 | 2500 | 3000 | 3500 |
| Weight (kg) | 1740 | 2050 | 2150 | 2250 | 2450 | 2950 |
| Tractor (hp) | 85-95 | 95-100 | 100-130 | 130-160 | 140-180 | 180-250 |
| Disc Spacing | 9″ (230mm) | |||||
| Axle Size | Square or round 1.4/7″ (40mm) | |||||
| Depth Cut | 7″-8.5/8″ (180-220mm) | |||||
| Bearing Assembly | Grease or oil bath | |||||
Additional Information
- Easy to maneuver with a small turning radius
- Requires minimal adjustment and maintenance
