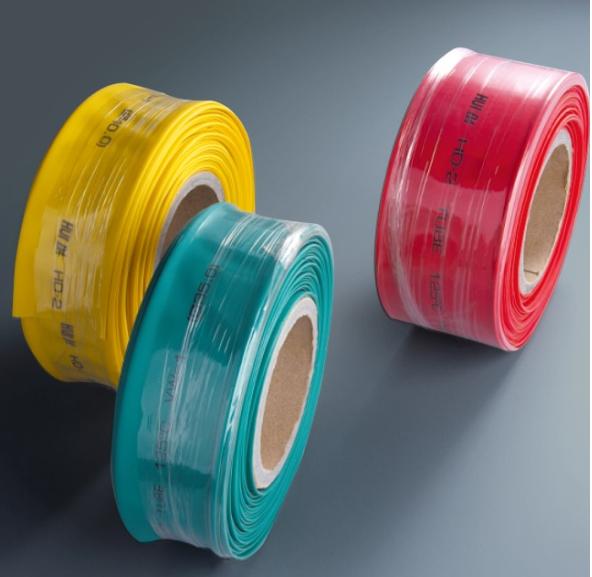

1KV thermal shrinkable busbar protective bushing 35
Inquire NowDescription
The 1KV thermal shrinkable busbar protective bushing 35 is a high-performance insulation solution designed for electrical bus bars operating at voltages up to 1KV and beyond. Made from radiation cross-linked polyolefin, this protective bushing exhibits exceptional insulating properties while being flexible and flame retardant. It is ideally suited for various applications such as rectangular, square, and round bus bars, inline bolted connections, and metal-clad switchgear, ensuring reliable insulation and protection in electrical systems. The innovative thermal shrinkage principle enhances its mechanical strength and resistance to chemical solutions and aging, making it a durable choice for demanding environments.
Specifications
| Property | Typical Data | Test Method |
|---|---|---|
| Tensile strength | ≥10.4MPa | ASTM D 2671 |
| Elongation at break | ≥200% | ASTM D 2671 |
| Tensile strength after heat ageing | ≥7.3MPa | 158℃×168h |
| Elongation after heat ageing | ≥100% | 158℃×168h |
| Longitudinal change | -5%～+5% | ASTM D 2671 |
| Flammability (Oxygen index) | VW-1 | ASTM D 2671 C |
| Heat Shock | No Tracks | 250℃×4h |
| Dielectric Strength | ≥15kV/mm | ASTM D 149 |
| Volume Resistivity | ≥1014Ω.cm | IEC 60093 |
Additional Information
- Shrink ratio: 2:1
- Min. shrink temperature: ≥84 °C
- Min. full recovery temperature: ≥120 °C
- Continuous operating temperature: -55 ~ 125 °C
- Colors available: Black, White, Red, Yellow, Green, Blue. Custom colors upon request.
- RoHS compliant
