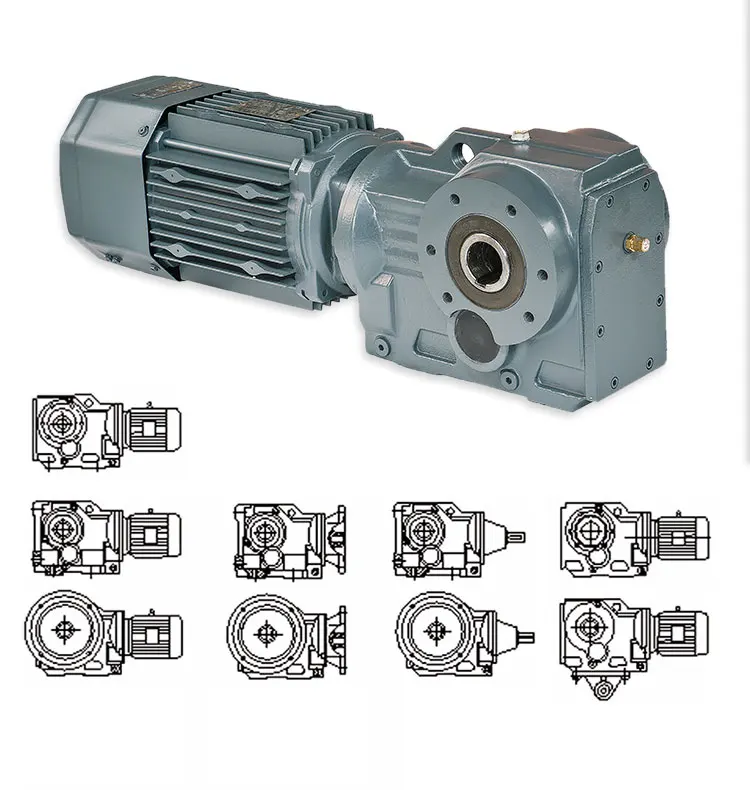

OEM ODM 1rpm electric ac gear motor,electric motor with right angel gear,motors geared motor
Description
The 1 RPM Electric AC Gear Motor is a high-performance geared motor designed for various industrial applications. Featuring a helical gear design, this motor is built on a modularized framework that ensures compact construction and remarkable transmission torque. With its low noise operation and high mechanical efficiency, this motor sets a new standard in the transmission industry.
Crafted from premium materials, including 20CrMnTi alloy steel, the gears have undergone rigorous heat treatment processes such as tempering, cementing, and quenching, achieving a remarkable surface hardness of HRC58° to HRC62°. This results in exceptional durability and reliability, making it suitable for applications in sectors like paper making, printing machinery, chemical machinery, and more.
Specifications
| Attribute | Details |
|---|---|
| Applications | Industry, chemical, oil, mine, and all transmission solutions! |
| Housing Material | HT250 high-strength cast iron |
| Housing Hardness | HBS190-240 |
| Gear Material | 20CrMnTi alloy steel |
| Surface Hardness of Gears | HRC58°~62° |
| Gear Core Hardness | HRC33~40 |
| Input / Output Shaft Material | 42CrMo alloy steel |
| Input / Output Shaft Hardness | HRC25~30 |

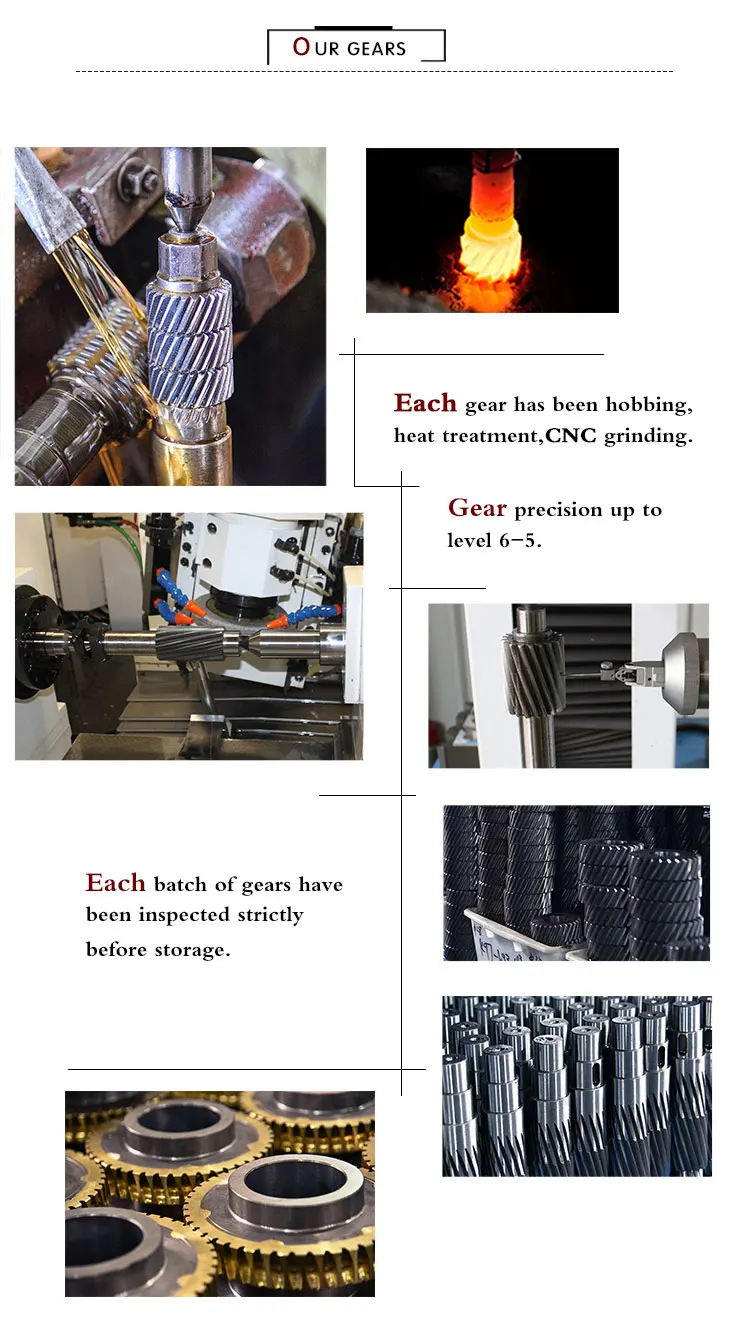

| Machining Precision of Gears | Accurate grinding, Grade 6~5 |
| Lubricating Oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat Treatment | Tempering, cementing, quenching, etc. |
| Efficiency | 94% |
| Noise (MAX) | 60~68dB |
| Temperature Rise (MAX) | 40℃ |
| Temperature Rise (Oil) (MAX) | 50℃ |
| Vibration | ≤20μm |
| Backlash | ≤20 Arcmin |
| Brand of Bearings | China Top brand HRB, LYC, ZWZ or other brands requested, NSK… |
| Brand of Oil Seal | NAK— Taiwan or other brands requested |
Additional Information
- Ideal for various heavy-duty applications across multiple industries.
- Designed for high durability and efficiency, meeting rigorous operational demands.
