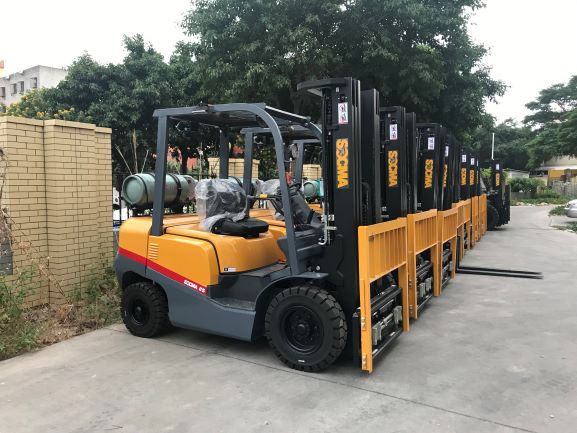

2.5 Ton LPG Small Forklift
Inquire NowDescription
The 2.5 Ton LPG Small Forklift is designed for high efficiency and energy saving, making it a revolutionary choice for modern material handling. This advanced forklift combines innovative hydraulic technology with a focus on user comfort, ensuring that both managers and drivers can operate effectively while handling piled goods. With features that enhance operational capacity, security, and efficiency, this forklift sets a new standard in the industry.
Key features include a removable side cover for easy inspections, integrated electric components for convenient maintenance, and an aluminum radiator that boosts cooling efficiency. The ergonomically designed cab includes an adjustable seat to reduce operator fatigue during long shifts, and a spacious step area for easy access. Safety enhancements, such as a double protection brake lever and an embedded LCD instrument, further elevate the operational experience.
This forklift is not just about performance; it’s about creating a comfortable working environment that allows for maximum output. With its innovative design and advanced technology, the 2.5 Ton LPG Small Forklift stands as a testament to ergonomic and functional excellence.
Specifications
| Model | Unit | FG20T |
|---|---|---|
| Power Unit | Gasoline | |
| Operator Type | Driver/Seat | |
| Transmission Box Type | Electronic Hydraulic Transmission | |
| Rated Capacity | 2000 kg | |
| Load Center | 500 mm | |
| Max. Lifting Height | 3000 mm | |
| Tyre Type | Pneumatic Tyre | |
| Tyre Number (Front/Rear) | 2/2 | |
| Tyre Size (Front/Rear) | 7.00-12-12PR/6.0-9-10PR | |
| Lifting Speed (Loaded/Unloaded) | 500/550 mm/s | |
| Lowering Speed (Loaded/Unloaded) | 480/450 mm/s | |
| Travelling Speed (Loaded/Unloaded) | 17/19 km/h | |
| Max. Gradeability (Loaded) | 21 % | |
| Max. Drawbar Pull (Loaded) | 18 n | |
| Mast Tilting Angle (Fwd/Bwd) | 6/12 deg | |
| Overall Length (without fork) | 2605 mm | |
| Overall Width | 1150 mm | |
| Overhead Guard Height | 2090 mm | |
| Fork Size (LxWxT) | 1220×122×40 mm | |
| Mast Height (Fork lowered) | 2090 mm | |
| Truck Weight | 3310 kg | |
| Fuel Tank Capacity | 70 L | |

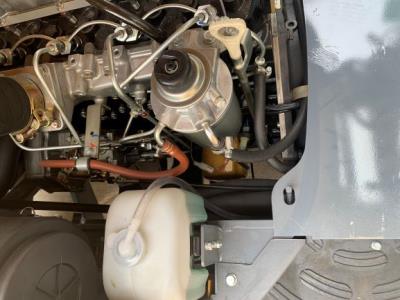

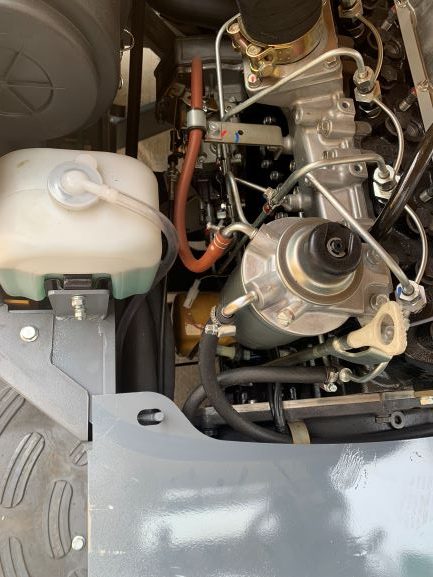

| Engine Brand | NISSAN | |
| Engine Model | K21 | |
| Rated Power | 31.2 kw/rpm | |
| Rated Torque | 143.7 n-m/rpm | |
| Number of Cylinders | 4 | |
| Displacement | 2.06 |
Additional Information
- Removable side cover for easy inspection and repairs.
- Control box integration for convenient maintenance.
- Enhanced cooling effect with aluminum heat sink.
- Large double muffler for superior noise reduction.
- Comfortable driving experience with an adjustable seat.
- Step area is approximately 1.5 times larger than similar models.
- Improved safety features to prevent operator slips and accidents.
- Spacious driver’s area for enhanced steering control.

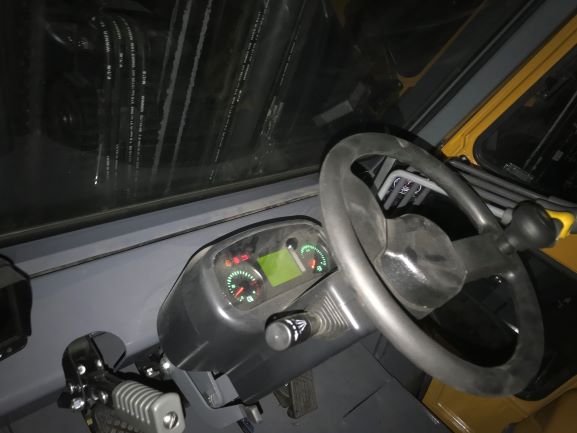

- Innovative LCD instrument for safe operation.
