2 waves guardrail roll forming machine

Inquire Now

Description

The Two Waves Guardrail Roll Forming Machine is a crucial tool designed for the production of standard-type metal guard rails, essential for roadway safety, and highway and traffic barriers. Crafted from galvanized steel sheets, this machine fabricates metal railings composed of waved beams that are engineered to bend upon impact during a vehicular collision, effectively absorbing shock and enhancing safety on the roads.

Specifications

Attribute Details
Matching Material According to the drawing
Material Thickness Range 3.0-4.0mm
Main Motor Power 22kw + 22kw
Oil Pump Power 22kw
Leveling Power 11kw
Hydraulic Decoiler Power 4kw
Forming Speed 8-12m/min (including punching)
Quantity of Stands About 15
Shaft Material and Diameter ￠110 mm, 45# steel
Tolerance 3m ± 1.5mm
Way of Drive Universal joint
Controlling System PLC
Total Weight About 30 Tons
Voltage 380V/ 3 phase/ 50 Hz (as customer requires)
Approx Size of the Machine 12m x 2m x 1.2m
Material of Forming Rollers Cr12, coated with chrome treatment

Additional Information

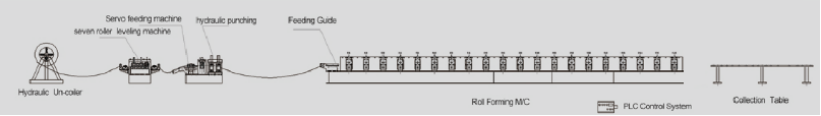

Working Process:

  • Hydraulic decoiler
  • Material guiding leveling
  • Servo feeding machine
  • Hydraulic punching with cutting
  • Roll forming machine
  • Collection table

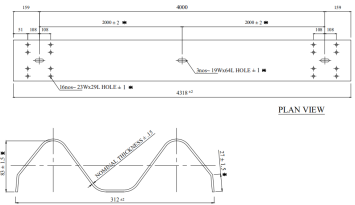

Drawing
