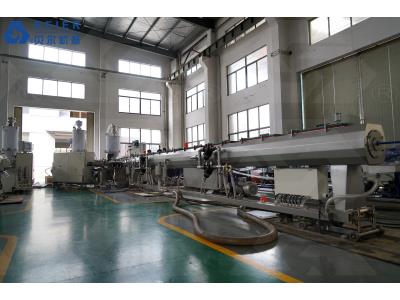

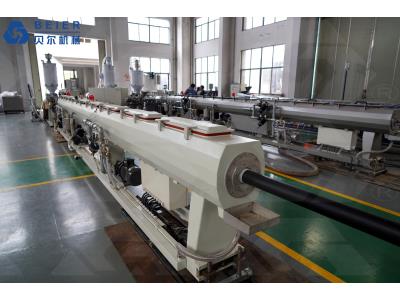

20-160mm HDPE/PE/PP/PP-R pipe extrusion line
Inquire NowDescription

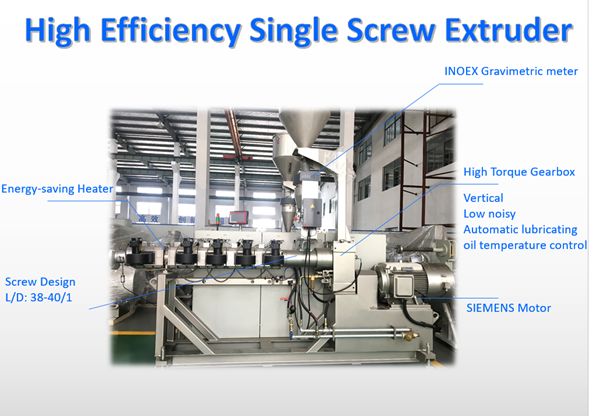

The 20-160mm HDPE/PE/PP/PP-R Pipe Extrusion Line is engineered for high-speed production of HDPE pipes, offering a versatile range from 20mm to 160mm. This state-of-the-art line boasts lower electrical and water consumption, ensuring cost-efficiency while maintaining high performance. The system is equipped with a high torque gearbox and a stability running mechanism, which guarantees smooth operation. Its innovative spiral grooved bush and high-efficiency screw structure facilitate optimal material flow and pressure distribution through a static mixing system.
The vacuum calibration and cooling system features a two-chamber design, allowing for rapid cooling with a multi-section water membrane. Recognized for its reliability, the line utilizes components from renowned brands such as Siemens for motors, Falk for reducers, and ABB for inverters, all managed through a sophisticated PLC control system. The double disk calibration sleeve design, made of brass and glass, enhances durability and performance.

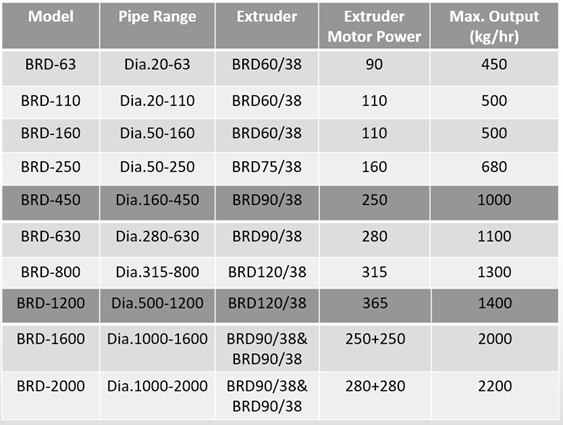

Specifications
| Attribute | Details |
|---|---|
| Pipe Range | 20-160mm |
| Electrical Consumption | Low |
| Cooling System | 9m Two Chamber Design |
| Components | Siemens Motor, Falk Reducer, ABB Inverter |
| Calibration Sleeve Design | Double Disk, Brass and Glass Material |
Additional Information
The line is designed to ensure stability and efficiency, making it ideal for manufacturers looking to enhance their production capabilities. Its advanced features support the production of high-quality pipes that meet international standards.
