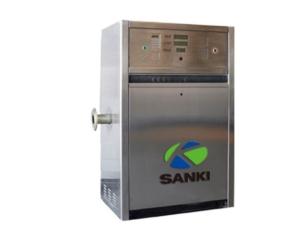

200/300/500 LPM Ultra Heavy Duty Fuel Dispenser
Inquire NowDescription
The 200/300/500 LPM Ultra Heavy Duty Fuel Dispenser is engineered for robust performance, specifically designed for the demanding refueling needs of trains and large ships. This high-capacity dispenser features a precision flow meter with an impressive accuracy of ±0.25%, ensuring reliable and efficient fuel delivery. The electrically driven valve operates seamlessly, even with dirty liquids, while a double stage filter system maintains fuel cleanliness and prolongs the lifespan of the flow meter. For enhanced security, it includes card authorization for staff, and the ARM electronic system provides a clear display for density, kilograms, and liters, making it an essential tool for diesel refueling operations.
Specifications
| Attribute | Details |
|---|---|
| Accuracy for the unit | ±0.25% |
| Flow rate | 200/300/500 L/min |
| Accuracy for Flow Meter | ±0.25% accuracy, OIML standard |
| Ambient temperature | -35°C ~ +55°C |
| Relative humidity | 20% – 95% |
| Unit noise rate | < 70dB |
| Inlet vacuum rate for suction pump | ≥ 54Kpa |
| Communication | With RS 485 port, or current loop |
| Power supply | 220V -10%~~220V +15%； (50/60±1)Hz |
| Digit of sale | 0.00~99999.99 |
| Digit of volume | 0.00~9999.99 |
| Digit of unit price | 0.00~999.99 |
| Totalizer of sale | 0~99999999.99 |
| Totalizer of volume | 0~9999999.99 |
Additional Information
Basic Configurations: Main board, power board, display board, keypad, control board, flow meter, electrical drive valve, electromagnetic counter, filter, nozzle, hose.
Optional Configuration: Pump, motor, card reader payment, heater for ultra-low temperature, connected to FMS, standard electronics interface to POS and automation fuel management system.
Model Range:
| Model | Flow rate | Flow meter | Nozzle | Package Size |
|---|---|---|---|---|
| SK56HY111A | 200/300/500L/min | Blade flow meter | 1 | 1490*1018*605 |
