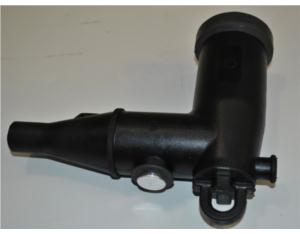

200A, 15kV Separable Loadbreak Elbow Connector 110124
Inquire NowDescription
The 200A, 15kV Separable Loadbreak Elbow Connector is a robust and reliable solution for connecting underground cables to transformers, switchgear, and junctions equipped with loadbreak bushings. This connector is designed to meet the highest industry standards, backed by a KEMA report and compliant with IEEE 386-2006 and DIN Std. 47636. Its fully insulated and shielded design ensures safety and efficiency in high-voltage applications.
With a rating of 200A and 15kV, this connector accommodates conductor cross-sections ranging from 25mm2 to 125mm2. The loadbreak probe, featuring an ablative-follower tip, provides dependable loadbreak switching characteristics, making it an essential component for any electrical installation. Molded from high-quality peroxide-cured EPDM insulation, it guarantees durability and long-lasting performance at a competitive price.
Specifications
| Attribute | Details |
|---|---|
| Rating | 200A, 15kV |
| Conductor Cross Section | 25mm2 to 125mm2 |
| Insulation Material | Peroxide-cured EPDM |
| Compliance | IEEE 386-2006, DIN Std. 47636 |
| Certification | ISO9000/14000 |
| Features | Fully insulated and shielded, dependable loadbreak switching |
Additional Information
This connector includes a test point for use with hot line voltage indicators, enhancing safety during maintenance and troubleshooting. Its design not only focuses on functionality but also emphasizes quality, providing a high-performance solution at a low price.
