200A,15kV screened separable connecotor,elbow cable connector, 110425
Inquire NowDescription

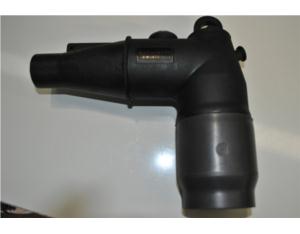

The CEE ZT-15/200 Loadbreak Elbow Connector is a state-of-the-art, fully-shielded and insulated plug-in termination designed for high-performance electrical applications. Rated at 200A and 15kV, it effectively connects underground cables with conductor cross sections ranging from 25mm2 to 125mm2. Constructed with high-quality peroxide-cured EPDM insulation, this connector ensures optimal durability and reliability.
Ideal for use with transformers, switchgear, and 200A junctions equipped with loadbreak bushings, the CEE ZT-15/200 also features a test point compatible with hot line voltage indicators, making it a practical choice for safe and efficient electrical connections.
Specifications
| CEE ZT-15/200 | Cable Insulation Range | |
|---|---|---|
| Inches | mm | |
| A | .55~.65 | 14.0~16.5 |
| B | .63~.73 | 16.0~18.5 |
| C | .69~.79 | 17.5~20.0 |
| D | .75~.85 | 19.0~21.5 |
| E | .78~.91 | 20.0~23.0 |
| F | .87~.98 | 22.0~25.0 |
| G | .87~.98 | 22.0~25.0 |
Additional Information
The connector comes with a KEMA test report, ensuring its compliance with industry standards for safety and performance.
