200L/55Gallon Steel Drum Production Line
Inquire NowDescription

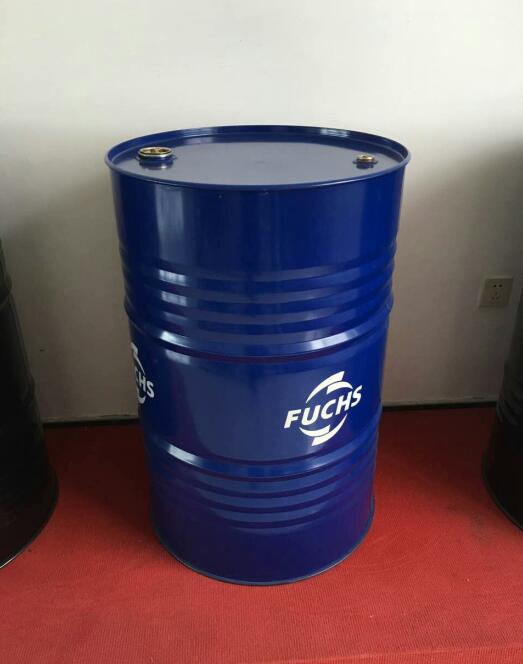

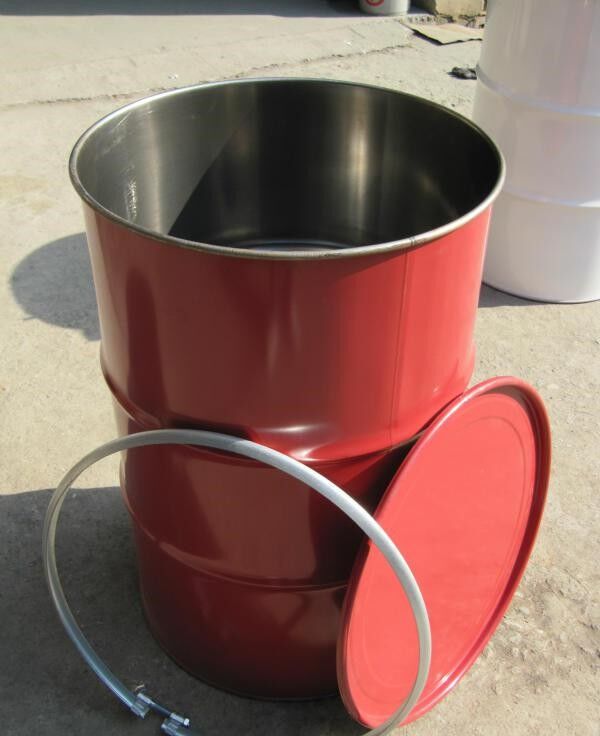

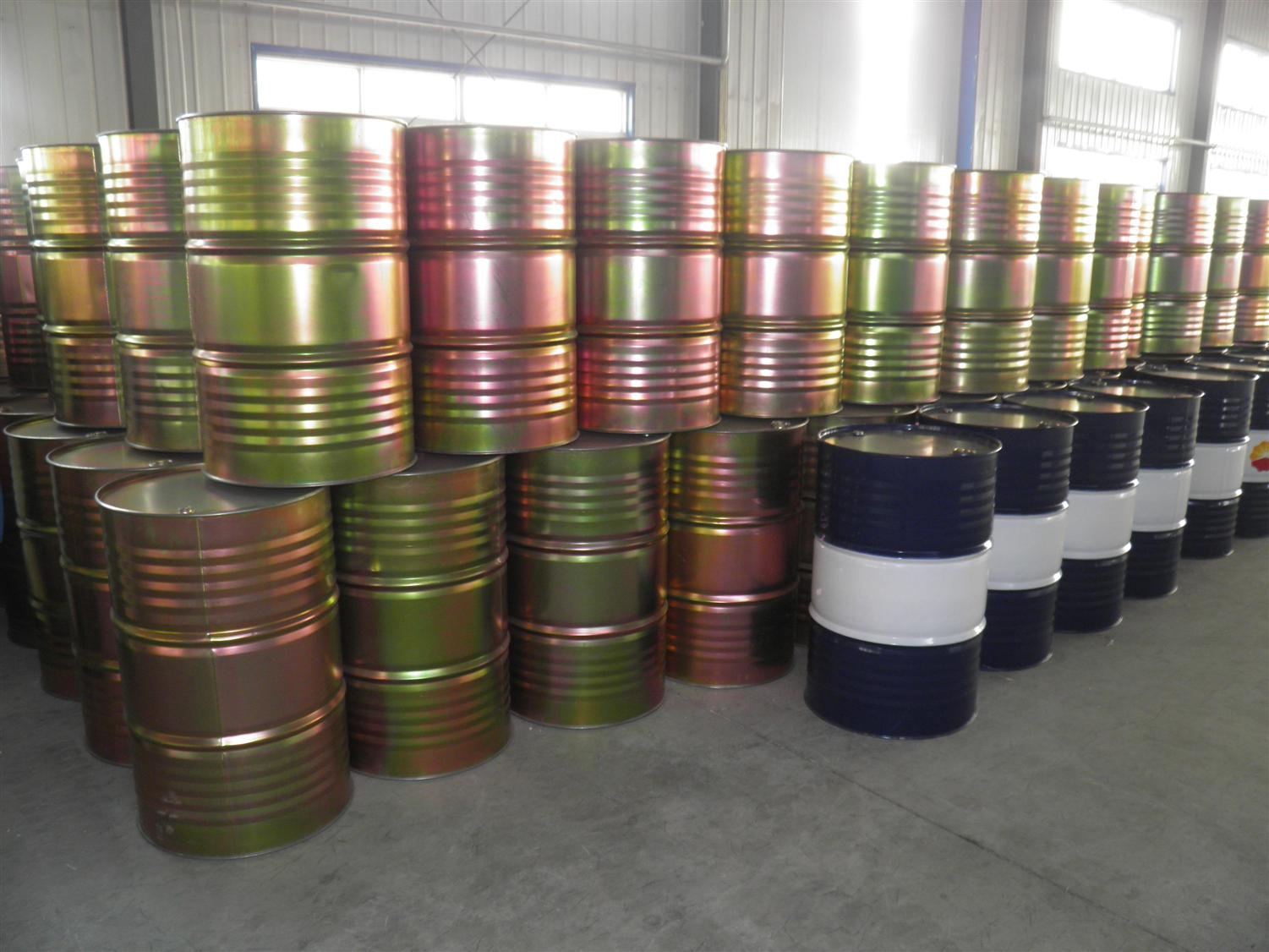

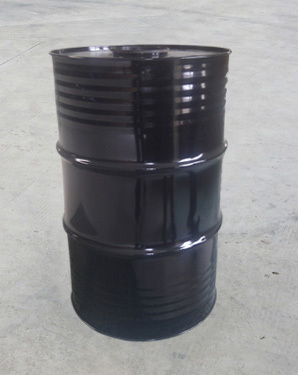

Our 200L/55 Gallon Steel Drum Production Line is engineered for efficient manufacturing of steel drums. This versatile production line accommodates various output speeds: low speed (1-2 pcs/min), medium speed (5-6 pcs/min), and high speed (7-8 pcs/min). It is capable of producing a range of drums including closed, open, conical, and bituminous types, making it suitable for industries such as oil, chemicals, food, and beverages.
The production line features a streamlined process that allows for easy operation and maintenance, maintaining a focus on cost-effectiveness without compromising quality. This equipment is perfect for small to medium-sized enterprises looking to optimize their production capabilities.

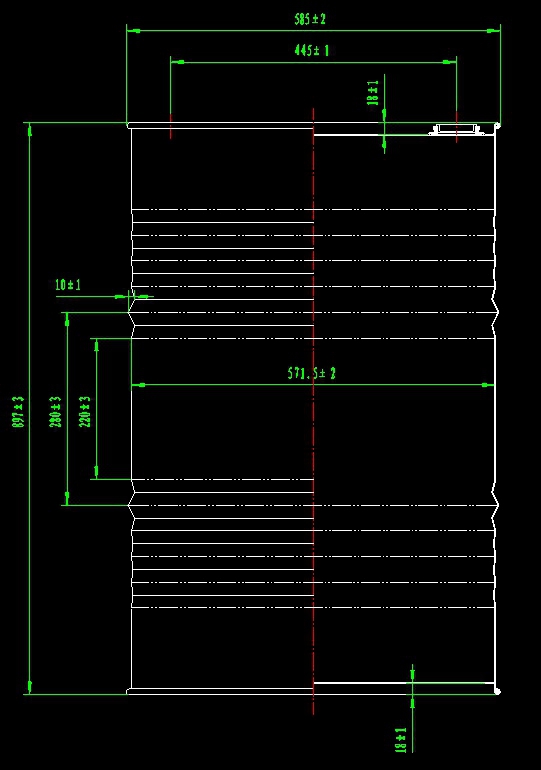

Specifications
| Feature | Details |
|---|---|
| Applied Sheet | SPCC steel plate or cold-rolled sheet |
| Drum Inner Diameter | 571.5 mm |
| Drum Outside Diameter | 585 mm |
| Drum Height | 897 mm |
| Outside Painting | Nitro bake paint |
| Paint Thickness | Minimum 18 micron |
| Body Color | One color or multicolor |
| Drum Capacity | 216.5 L (55 Gallon, US) |
| Weight | 16-18 kg |
| Closures | 2 closures |
| Top Holes | One 3/4 Inch and one 2 Inch |
| Number of Corrugations | 6-10 |
| Material Thickness | 0.8-1.2 mm |
Additional Information
- Note: The drum specifications can be customized as per customer requirements.
- Production Capacity:
Plate Thickness (mm) Finished Drums (pcs/T) Production Capacity (kg/pc) 1.2 41 21.5 1.0B 47 19 1.0 50 18 0.9B 54 16.8 0.9 56 16.2 0.8 63 15.9
