2019 CUL Certified HVAC Definite Purpose Brand Magnetic 3 Poles Electronic AC Contactor 3P
Inquire NowDescription
The 2019 CUL Certified HVAC Definite Purpose Brand Magnetic 3 Poles Electronic AC Contactor is engineered for reliability and performance in HVAC applications. This robust contactor is designed to handle a current of up to 90 Amps and operates on a voltage range of 24-277V, making it ideal for air conditioning systems. Its construction meets the ARI 780/790 Standard, ensuring it stands up to rigorous industry requirements.
With a universal metal mounting plate, installation and replacement are simplified, while its long electrical life is tested to an impressive 250,000 cycles. The mechanical life is even more remarkable, tested to 1,000,000 cycles. The EE magnet assembly enhances performance without compromising power consumption, and the superior copper coil ensures efficient operation. This contactor performs reliably regardless of its mounting position and offers flexible termination options for various applications.
Specifications
| Attribute | Details |
|---|---|
| F/L Inductive Amps | 90 |
| Poles | 3 |
| Resistive Amps | 24 |
| Coil Voltage | 208/240 |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 540/450/360 |
Additional Information

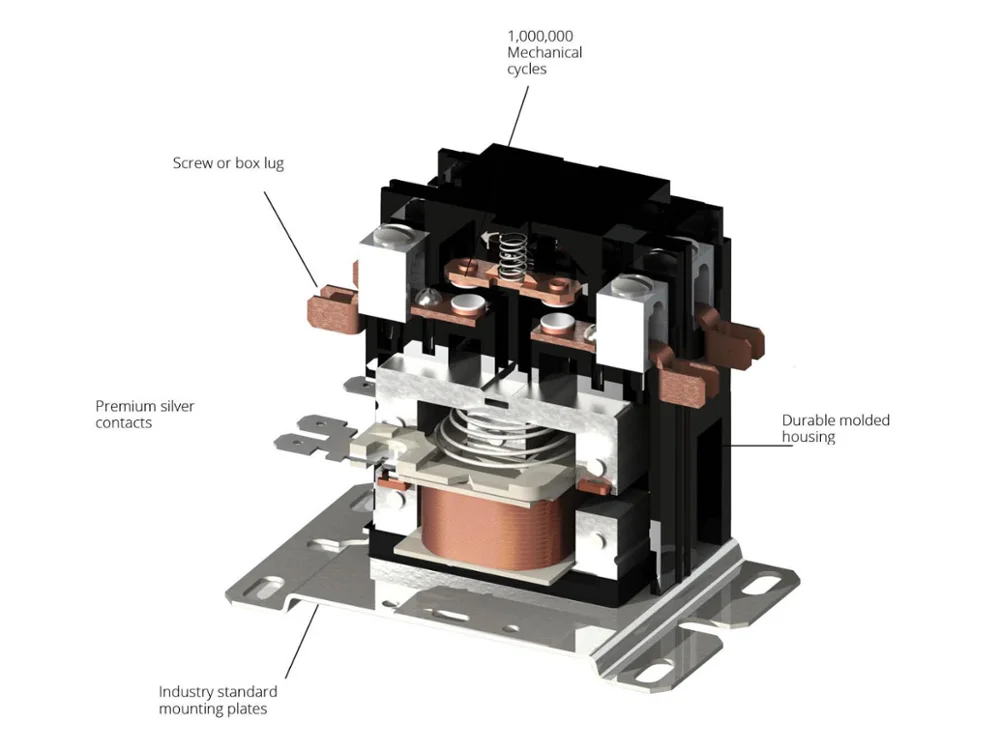

Features:
- Meets The ARI 780/790 Standard
- Long electrical life; tested to 250,000 cycles
- Reliable mechanical life; tested to 1,000,000 cycles
- EE magnet assembly for optimal performance
- Flexible termination options for various applications
- Dust-free internal constructions
Applications: Ideal for the HVACR industry, suitable for refrigeration, air conditioning, heating, food service equipment, vending machines, compressors, pumps, cranes, hoists, welding machines, power supplies, and lighting.
