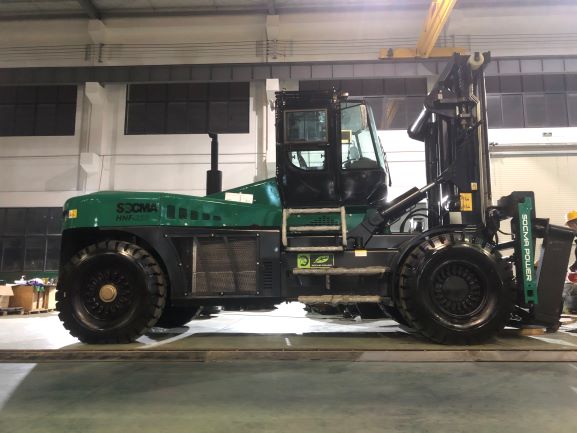

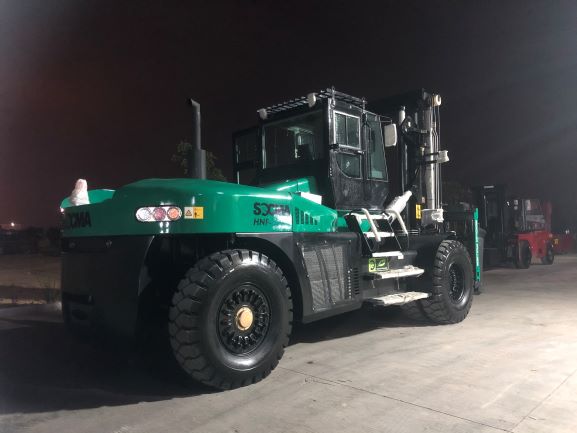

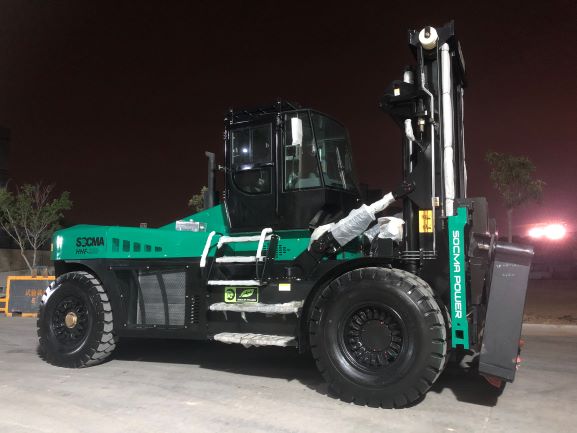

25 Ton Diesel Heavy Forklift Truck Color Green and New Style
Inquire Now25 Ton Diesel Heavy Forklift Truck Color Green and New Style
Basic Parameter
| Technical Parameter | |||
| Design details | |||
| Item | HNF-250N | ||
| Features | Rated Load | Q（t） | 25 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4400 | |
| Weight | Weight | kg | 35000 |
| Chassis | Tyre Specs.:Front | 14.00-24-28PR | |
| Tyre Specs.:Rear | 14.00-24-28PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 42 | ||
| Wheel tread:Front | b10（mm） | 2200 | |
| Wheel tread:Rear | b11（mm） | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 612 |
| Mast height(fork lowering) | h1（mm） | 3860 | |
| Mast lifting height | h3（mm） | 3500 | |
| Max.lifting height | h4（mm） | 5610 | |
| Height to head guard(height to cab) | h6（mm） | 3510 | |
| Overall Length(with forks) | l1（mm） | 9190 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 6745 | |
| Overall width | b1/b2（mm） | 3050 | |
| Fork Dimension | s/e（mm） | 2440X300X110 | |
| Fork carriage width | b3（mm） | 3050 | |
| Mast min ground clearance(with load) | m1（mm） | 300 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 420 | |
| Min.Turning radius | Wa（mm） | 6700 | |
| Travel speed(with load/without load) | km/h | 25/29 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 |
| Max.Lowering speed(with load/without load) | mm/s | 315/260 | |
| Traction | kN | 170 | |
| Grade ablity(with load/without load) | ％ | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Weichai engine |
| WP10G220E343 9.726L 162KW 2000rpm |
|||
| Optional two | Dongfeng Cummins | ||
| QSC8.3-C240 8.3L 179KW 2200rpm |
|||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 21 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
