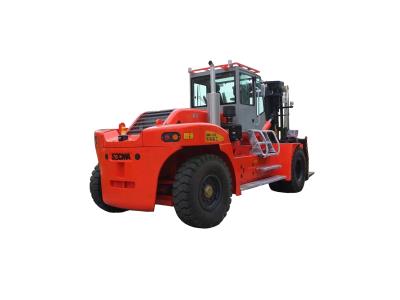

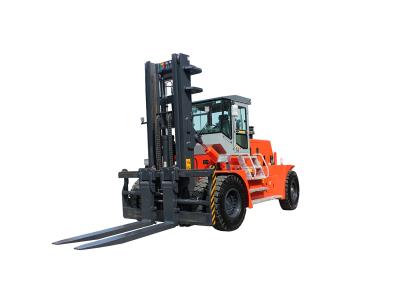

25 Ton Diesel Heavy Forklift Truck Color Red New Style
Inquire NowDescription
The Heavy Duty 25 Ton Diesel Forklift Truck in vibrant red is engineered for exceptional performance and reliability. With a turbocharged engine designed for low oil consumption, this forklift delivers powerful torque while prioritizing energy conservation and environmental protection. The full-hydraulic steering system, featuring a transverse oil cylinder type steering bridge, ensures flexibility and ease of handling. Its advanced transmission utilizes imported technology for smooth operation, and the robust braking system, including mature disc brakes, enhances safety and stability under heavy loads. This forklift also features a pilot valve control system that increases work efficiency while reducing driver fatigue.
Built with exquisite workmanship, the forklift boasts a firm box-type frame that enhances both transverse and longitudinal stability. The hydraulic fork positioner simplifies operation, making it easier for drivers to handle materials efficiently. The full cab is equipped with air conditioning and a heating system for driver comfort, ensuring optimal working conditions.
Specifications
| Technical Parameter | |||
|---|---|---|---|
| Design details | |||
| Item | HNF-250 | ||
| Features | Rated Load | Q（t） | 25 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4400 | |
| Weight | Weight | kg | 35000 |
| Chassis | Tyre Specs.:Front | 14.00-24-28PR | |
| Tyre Specs.:Rear | 14.00-24-28PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 42 | ||
| Wheel tread:Front | b10（mm） | 2200 | |
| Wheel tread:Rear | b11（mm） | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 612 |
| Mast height(fork lowering) | h1（mm） | 3860 | |
| Mast lifting height | h3（mm） | 3500 | |
| Max.lifting height | h4（mm） | 5610 | |
| Height to head guard(height to cab) | h6（mm） | 3510 | |
| Overall Length(with forks) | l1（mm） | 9190 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 6745 | |
| Overall width | b1/b2（mm） | 3050 | |
| Fork Dimension | s/e（mm） | 2440X300X110 | |
| Fork carriage width | b3（mm） | 3050 | |
| Mast min ground clearance(with load) | m1（mm） | 300 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 420 | |
| Min.Turning radius | Wa（mm） | 6700 | |
| Travel speed(with load/without load) | km/h | 25/29 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 |
| Max.Lowering speed(with load/without load) | mm/s | 315/260 | |
| Traction | kN | 170 | |
| Grade ability(with load/without load) | ％ | 20/21 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine | Engine brand/model | Optional one | Weichai engine |
| WP10G220E343 | |||
| 9.726L 162KW 2000rpm | |||
| Optional two | Dongfeng Cummins | ||
| QSC8.3-C240 | |||
| 8.3L 179KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 21 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
