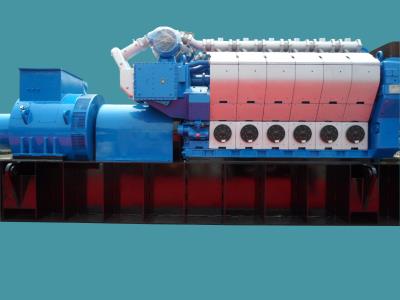

2632 series diesel engine and gensets
Inquire NowDescription
The 2632 series diesel engine and gensets are engineered for high performance and efficiency, comprising V-12, 16, 18 cylinders, and in-line 6, 8, and 9 cylinders. Built on the robust 12V/2632 diesel engine model, these engines utilize diesel oil, heavy oil, and natural gas. They are designed to operate at medium speeds, providing high power with low fuel consumption while ensuring reliability and longevity. Developed in collaboration with AVL of Austria, the engines incorporate advanced technologies such as a high-pressure common rail fuel system, dual electronic control, and ultra-supercharging technology, all contributing to enhanced performance and reduced emissions. The heavy oil variant of the series is particularly noteworthy for its cost-effectiveness and ecological benefits, making it ideal for diverse applications including inland river navigation, dredging, offshore oil equipment manufacturing, and power generation in large-scale power stations.
Specifications
Engine series | Engine model | Fuel injection system | Cylinders & Arrangement | Cylinder bore (mm) | Piston stroke (mm) | Power factor (kW) | RPM (r/min) | Total piston displacement (L) | Fuel Consumption Rate (g/kW.h) | Lub. oil consumption (g/kW.h) | Oil pan capacity (L) |
---|---|---|---|---|---|---|---|---|---|---|---|
26/32 (2619-4170 kW) | 12V26/32 | High-voltage common rail ECU electronic control jet | 12 cylinders, V type | 260 | 320 | 4170 | 1000 | 204 | ≤184 + 5% | ≤0.5 | 45.8 |
3492 | 900 | ||||||||||
9L2632 | 9 cylinders, in-line | 3128 | 1000 | 153 | |||||||
2619 | 900 |
Genset series | Genset Model | Engine model | Alternator model | Power (kW) | RPM (r/min) | Voltage (V) | Frequency (Hz) | Power Factor | Genset Dimension (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|
260 (2400-3900 kW) | 2400GF | 9L2632 | The standard configuration is CSIC TFC4 series, which can be selected according to customers’ requirements | 2400 | 900 | 480/13800 | 60 | 0.8 | 8800 × 2920 × 3535 | 59000 |
2800GF | 2800 | 1000 | 400V/6300V/10500V | 50 | ||||||
3200GF | 12V26/32 | 3200 | 900 | 480/13800 | 60 | 11392 × 2820 × 3600 | 62000 | |||
3900GF | 3900 | 1000 | 400V/6300V/10500V | 50 |
