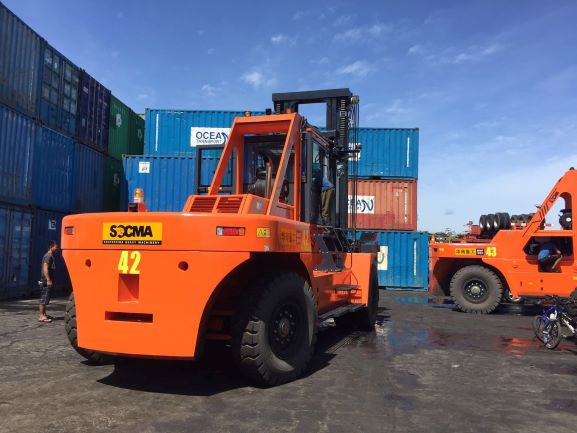

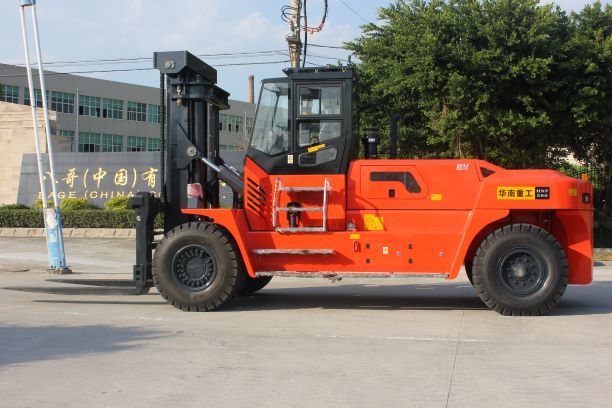

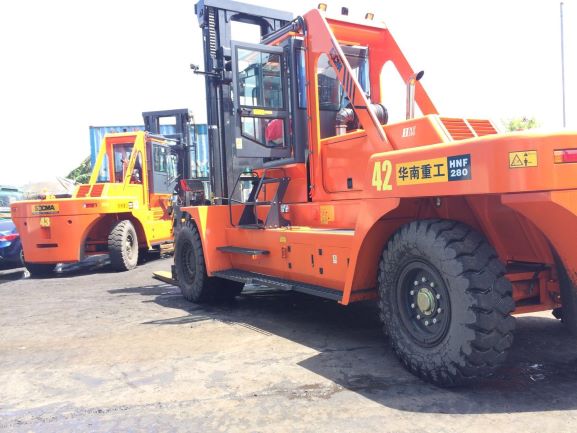

28 Ton Diesel Heavy Forklift Truck Color Orange Lift Containers
Inquire NowDescription
The 28 Ton Diesel Heavy Forklift Truck in a striking orange color is engineered for robust performance and efficiency in lifting containers. It features a low oil consumption, high-quality turbocharged engine that delivers excellent power performance with substantial torque reserves, ensuring energy conservation and environmental protection. The forklift is equipped with a transverse oil cylinder type steering bridge and full-hydraulic steering for flexibility and reliability.
With its advanced transmission and torque converter technology, this forklift offers smooth operation and easy maintenance. The braking system employs high-performance disc brakes for superior heat dissipation and stable braking effects, especially under heavy loads. The pilot valve control device enhances work efficiency while reducing driver fatigue.
Designed with a strong and exquisite box-type frame, this forklift boasts enhanced stability through 3D finite element analysis and rigorous quality checks. Its hydraulic fork positioner simplifies operation, while the box-type mast with all-round roller bearings significantly boosts lifting capabilities. The full cab is fitted with air conditioning, heating, and a rear view display for optimal comfort and visibility.
Specifications
| Item | Value |
|---|---|
| Rated Load | 28 t |
| Load Center | 1250 mm |
| Wheelbase | 4800 mm |
| Weight | 39000 kg |
| Mast Height (Fork Lowering) | 3950 mm |
| Max Lifting Height | 5700 mm |
| Overall Length (with forks) | 9590 mm |
| Overall Width | 3200 mm |
| Speed (with load/without load) | 24/28 km/h |
| Max Lifting Speed (with load/without load) | 260/280 mm/s |
| Max Lowering Speed (with load/without load) | 250/180 mm/s |
| Driving Brake | Hydraulic clamp disc |
Additional Information
This forklift is suitable for heavy-duty operations in warehouses, shipping yards, and construction sites where versatility and power are paramount. Regular maintenance checks are recommended to ensure optimal performance and longevity. It features a durable design that adheres to the highest safety standards, making it an essential machine for any industrial setting.
