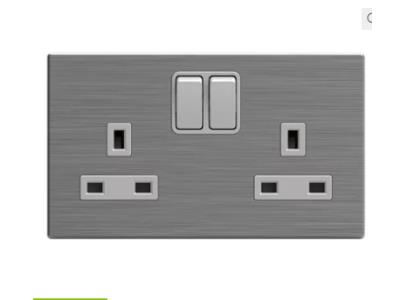

2G Stainless Steel D/P Switched BS Sockets
Inquire NowDescription
2G Stainless Steel D/P Switched BS Sockets are designed with safety and versatility in mind. Featuring a protective door to prevent electric shock, these sockets are suitable for various environments including homes, schools, and hotels. Made from high-temperature resistant materials, they ensure durability and safety during operation. Established in 1985, our company has a rich history in producing reliable switches and sockets, with a modern focus on European standards since 2012, achieving certifications such as CE, CB, and TUV.
Specifications
| Attribute | Details |
|---|---|
| Type | Plug Socket |
| Series | W86A series |
| Brand Name | SOK |
| Model Number | W86A/13UKS/2 |
| Color | Interior – white or customized; Cover frame – brushed finish stainless steel |
| Material | Switch paddle, Insert – PC; Chassis – high polymer PC with glass fiber; Base – PA nylon |
| Rated Voltage | 250V~ |
| Rated Current | 13A |
| Network Frequency | 50/60Hz |
| Number of Gangs | 2 Gang, 1 Gang available |
| Function | Double pole |
| Actuator | Rocker |
| Device Mounting | Flush wall mounted |
| Dimension | 86*147mm |
| Flame Retardancy | 850℃ |
| IP Degree of Protection | IP20 |
| Application | Industrial, Hotel, Club, Commercial, Residential building |
Additional Information
Tested Lifetime: At least 40,000 times for the switch.
Warranty: 10 years.
Packing: 1 pcs/plastic bag 205*115mm; 6 pcs/box 185*154*93mm; 60 pcs/carton 490*320*200mm.
