3 point PTO Tractor Flail Mower
Inquire NowDescription

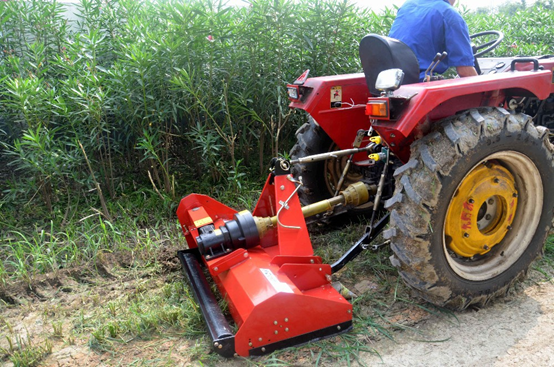

The 3 Point PTO Tractor Flail Mower is designed to enhance your agricultural efficiency with its robust and reliable performance. This mower features a sturdy transmission system powered by toothed belts, ensuring durability and ease of use. It is compatible with tractors requiring between 15 to 35 horsepower, making it versatile for various farming applications. The gearbox, made from gravity casting iron, offers superior material performance and resilience against breakage. With adjustable rear rollers, you can customize the mowing height to suit your specific needs. The mower is built with a firm and stable structure, utilizing high-quality welding processes for maximum strength. Additionally, it comes equipped with front protection to prevent debris from splashing. The Y-shaped blades, combined with hammer and vertical blades, guarantee efficient grass cutting with double blades for optimal performance.
Specifications
| Model | EFD-95 | EFD-105 | EFD-115 | EFD-125 | EFD-135 |
|---|---|---|---|---|---|
| Dimension (mm) | 1040×700×520 | 1140×700×520 | 1240×700×520 | 1340×700×520 | 1440×700×520 |
| Weight (Kg) | 130 | 145 | 155 | 170 | 175 |
| Cutting Width | 950mm | 1050mm | 1150mm | 1250mm | 1350mm |
| PTO Input Speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Y Shape Blades | 60 | 72 | 78 | 84 | 84 |
| Power Required | 16-20HP | 20-25HP | 20-30HP | 20-30HP | 20-30HP |
| 3 Point Linkage | Cat.1 | Cat.1 | Cat.1 | Cat.1 | Cat.1 |
| Packing Size (mm) | 1150×750×550 | 1250×750×550 | 1350×750×550 | 1450×750×550 | 1550×750×550 |
