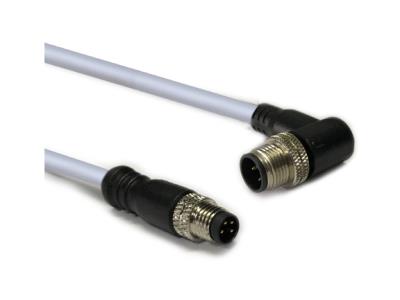

3 Pole M12 Shield Assemblies

Inquire Now

Description

The 3 Pole M12 Shield Assemblies are specially designed for use in automation technology and industrial applications, enabling reliable external interconnection of electronic equipment. These assemblies are suitable for flexible use and indoor installation, particularly in environments with high electrical interference, ensuring stable performance in demanding conditions.

With a shielded type construction, these assemblies excel in preventing external electromagnetic interference (EMI) while providing a long service life. They are available in various lengths and sheath options, making them versatile for different applications.

Specifications

Parameter Details
Temperature Range
  • Fixed Application: PVC -40℃~80℃, PUR -40℃~80℃
  • Mobile Application: PVC -5℃~70℃, PUR -20℃~80℃
Protection Classification IP67
Coding A
Minimum Bending Radius
  • Fixed Application: 4D (D = cable diameter)
  • Mobile Application: 7.5D (D = cable diameter)
Conductor Fine stranded bare copper wire
Insulation PVC
Color Blue, brown, black (conductor), Grey (jacket)
Shielded AL/Mylar screen and tinned copper braiding
Jacket PVC, PUR

Additional Information

  • Cable flame resistance according to IEC60332-1
  • Excellent resistance to external EMI
  • Resistant to abrasion and oil, particularly in PUR materials
  • Flexible design allows for easy equipment changes
