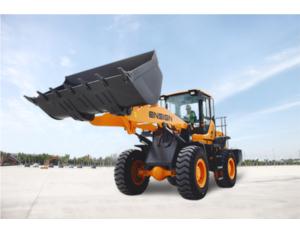

3-ton wheel loader—YX636
Inquire NowDescription
The YX636 3-ton wheel loader is designed for optimal performance and safety in heavy-duty operations. Its robust framework ensures all-around clear visibility and an isolated cab equipped with a shock absorption system provides a luxurious and comfortable operating environment. Users can enjoy the benefits of an optional A/C system while experiencing low fuel consumption and noise thanks to the high-performance engine.
This loader features a single-stage 4-element double-turbine hydraulic torque converter that maximizes engine power, resulting in enhanced torque and traction force. The 5t planetary power shift transmission guarantees high efficiency and longevity. With reinforced drive axles capable of handling substantial loads, the YX636 maintains stability and reliability throughout its operation.
Easy operation is facilitated by the pilot single handle control system and a large displacement working pump, while the articulated frame design enables flexible steering and excellent passage capability.
Specifications
| Standard Configuration | |||
|---|---|---|---|
| Engine | Yuchai 6B125-T20 | Rated Speed | 2200r/min |
| Rated Power | 92kW | Transmission | Planetary power shift |
| Torque Converter | Single-stage, four elements | Drive Axles | Dry type |
| Tyres | Wide base bias tyres | Bucket Capacity | 1.6-3.0m3 |
| Hood | Backflipped | Cab | Standard cab |
| Steering System | Load sensing hydraulic | Hydraulic Control | Pilot control |
| Cab Temperature Adjustment | Heater, fan | Seat | Luxurious seat |
| Overall Parameters | |||
|---|---|---|---|
| Rated Load | 3000kg | Max. Speed | ≥38km/h |
| Wheel Base | 2850mm | Wheel Tread | 1865mm |
| Breakout Force | ≥105kN | Traction | ≥96kN |
| Turning Radius at Outside of Bucket | 5912mm | Total Cycle Time | ≤9.2s |
| Steering Angle | 38° | Gradeability | 30° |
| Dump Height | 2950mm | Dump Distance | 1050mm |
| Overall Dimension L*W*H(mm) |
7100X2510X3230 | Overall Operating Weight | 10700kg |
