3 waves guardrail roll forming machine
Inquire NowDescription

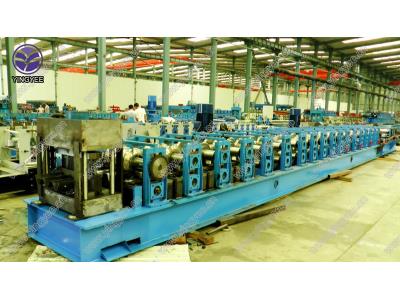

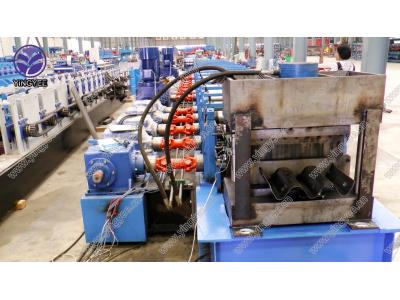

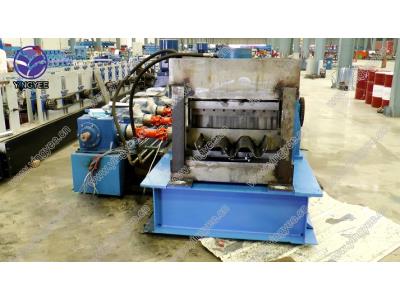

3 Waves Guardrail Roll Forming Machine is an innovative solution designed for manufacturing high-quality guardrails used in road barriers. This machine processes steel sheets with a thickness range of 2-4mm, transforming them into durable 3 waves pattern sheets through advanced rolling and cold bending techniques. The equipment boasts several advantages, including lightweight construction, high strength, earthquake-proof and fireproof properties, an appealing design, low energy consumption, and long lifespan, making it an excellent choice for infrastructure projects.

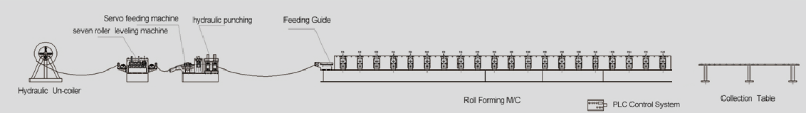

The operational workflow of the machine is efficient, comprising a hydraulic decoiler, material guiding, leveling, servo feeding, hydraulic punching with cutting, roll forming, and a collection table.
Specifications
| Attribute | Details |
|---|---|

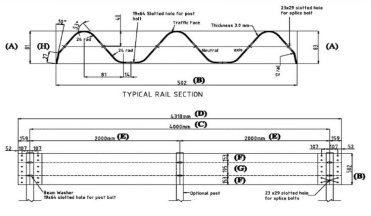

| Matching Material | According to the drawing |
| Material Thickness Range | 3.0 – 4.0 mm |
| Main Motor Power | 55 kW |
| Oil Pump Power | 45 kW |
| Hydraulic Decoiler Power | 5.5 kW |
| Forming Speed | 10 m/min (including punching) |
| Quantity of Stands | About 15 |
| Shaft Material and Diameter | ￠110 mm, 45# steel |
| Tolerance | 3m ± 2mm |
| Way of Drive | Universal joint |
| Controlling System | PLC |
| Total Weight | About 40 Tons |
| Voltage | 380V / 3 phase / 50 Hz (customizable) |
| Approx Size of Machine | L*W*H: 18m * 2m * 1.2m |
| Material of Forming Rollers | GCR15 |
Additional Information
- Efficient production for road safety barriers.
- Suitable for various infrastructure applications.
