30 SERIES BLDC Motor

Inquire Now

Description

The 30 SERIES BLDC Motor is engineered for precision and efficiency, making it an ideal choice for various applications in automation and robotics. With a star winding type and a hall effect angle of 120 degrees, this motor ensures smooth operation and high performance. Its shaft run out of just 0.025mm guarantees minimal vibration, while the Class B insulation enhances durability and reliability under varying conditions. Designed to withstand ambient temperatures from 0 to +50℃, this motor is built to perform in diverse environments.

Specifications

Attribute	Value
Winding Type	Star
Hall Effect Angle	120 degree electrical angle
Shaft Run Out	0.025mm
Insulation Class	Class B
Dielectric Strength	500VDC for one minute
Ambient Temperature	0—+50℃

Wire Diagram

Lead No.	Lead Color	Lead Gauge	Function
1	ORA	26AWG UL1007	Phase U
2	GRE		Phase V
3	BRO		Phase W
4	RED	26AWG UL1007	+5V
5	BLA		GND
6	YEL		HALL A
7	WHI		HALL B
8	BLU		HALL C

Electrical Specification

Model	30DMW41-2450	30DMW56-1215
Voltage (V)	24	12
Number of Poles	4
Rated Power (W)	6	4
No Load Speed (rpm)	7700	3200
Rated Torque (mN.m)	11	25
Rated Speed (rpm)	5000	1500
Rated Current (A)	0.5	0.7
Back-EMF Constant (V/Krpm)	2.2	3.4
Resistance (Ohm)	11.2	6
Weight (Kg)	0.08	0.1

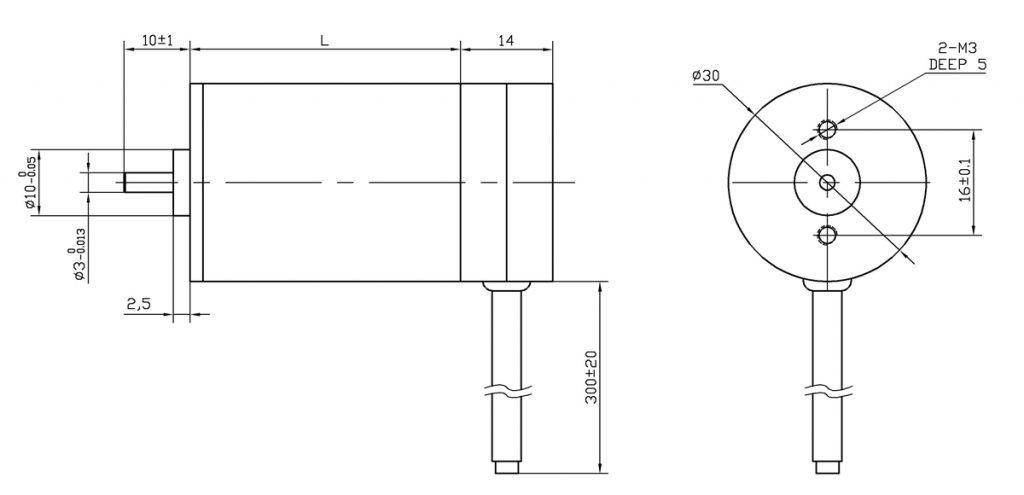

Length (mm)	41	56

Additional Information

The 30 SERIES BLDC Motor is suitable for applications requiring high efficiency and low noise. Ensure proper installation and follow safety guidelines during operation to maximize performance and longevity.
