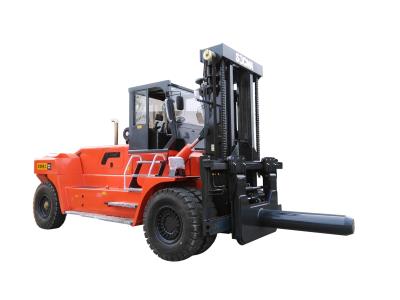

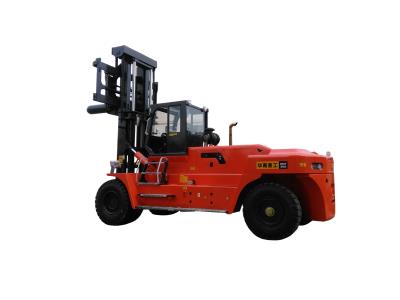

30 Ton Heavy Forklift Truck Attach Roll Prong
Inquire NowDescription
The 30 Ton Heavy Forklift Truck Attach Roll Prong is engineered for optimal heavy-duty performance, featuring a turbocharged engine that boasts low oil consumption and excellent power performance. This robust forklift is designed for energy conservation and environmental protection, ensuring it meets the demanding needs of industrial applications. Its advanced steering system incorporates a transverse oil cylinder type steering bridge with full hydraulic steering, providing a flexible and reliable driving experience.
The truck is equipped with a sophisticated transmission system that enhances convenience and smooth operation, while the braking system utilizes high-quality disc brakes for superior heat dissipation and stability under heavy loads. The control system includes pilot valve controls to boost work efficiency and reduce operator strain. Furthermore, the cooling system features independent transmission and hydraulic oil coolers, enhancing system reliability and longevity.
The frame construction is notable for its exquisite craftsmanship, featuring a sturdy box-type design that improves both transverse and longitudinal stability. Adhering to rigorous 3D finite element analysis, this forklift promises a superior structure and reliable quality.
The hydraulic fork positioner simplifies operations, while the box-type mast, equipped with all-around roller bearings, enhances lifting performance. The full cab includes air conditioning and heating, ensuring comfort in various operating conditions.
Specifications
| Basic Parameter | Details |
|---|---|
| Rated Load | 30 tons |
| Load Center | 1250 mm |
| Wheelbase | 4800 mm |
| Weight | 40000 kg |
| Tyre Specs. Front/Rear | 14.00-24-32PR |
| Overall Length (with forks) | 9590 mm |
| Max Lifting Height | 5700 mm |
| Travel Speed (with load/without load) | 24 km/h / 28 km/h |
| Max Lifting Speed (with load/without load) | 260 mm/s / 280 mm/s |
| Engine Brand/Model | Weichai Engine (WO10G240E341) |
Additional Information
- Engine options available: Weichai, Cummins, Yuchai, Volvo, and more.
- High-quality electrical components for durability.
- Optional features include duplex free lifting and three-stage free lifting mast.
- Luxurious wide-view cab for enhanced visibility.
