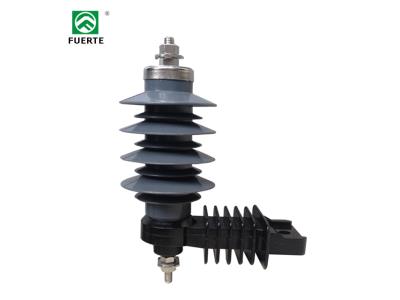

30KV Polymer surge arrester
Inquire NowDescription
The Polymeric Housed Metal-Oxide Surge Arrester Model YH10W-30 is designed to provide exceptional protection for power transmission and distribution systems rated up to 220kV, safeguarding against over-voltage events. This surge arrester showcases cutting-edge technology combined with years of expertise in surge protection, ensuring reliability and high performance.
It features an outstanding anti-moisture capability and pollution resistance, making it suitable for a variety of environmental conditions. Available in different types including GIS metal oxide, composite metal oxide, and porcelain metal oxide surge arresters, this product is lightweight and designed for easy installation and maintenance. With a robust sealing capability, it ensures reliable operation under various conditions and boasts a high energy absorption capacity.
Specifications
| Type | Ur(KV) | MCOV(KV) | 8/20 μs Lightning Current Impulse | 2ms Rectangular Current Impulse Withstand | 4/10 μs High Current Impulse Withstand | In(kA) |
|---|---|---|---|---|---|---|
| YH10W-6 | 6 | 5.1 | 18 | 250 | 100 | 10 |
| YH10W-9 | 9 | 7.65 | 27 | 250 | 100 | 10 |
| YH10W-10 | 10 | 8.4 | 30 | 250 | 100 | 10 |
| YH10W-11 | 11 | 9.4 | 33 | 250 | 100 | 10 |
| YH10W-12 | 12 | 10.2 | 36 | 250 | 100 | 10 |
| YH10W-15 | 15 | 12.7 | 45 | 250 | 100 | 10 |
| YH10W-18 | 18 | 15.3 | 54 | 250 | 100 | 10 |
| YH10W-21 | 21 | 17.0 | 63 | 250 | 100 | 10 |
| YH10W-24 | 24 | 19.5 | 72 | 250 | 100 | 10 |
| YH10W-27 | 27 | 22.0 | 81 | 250 | 100 | 10 |
| YH10W-30 | 30 | 24.4 | 90 | 250 | 100 | 10 |
| YH10W-33 | 33 | 27.5 | 99 | 250 | 100 | 10 |
| YH10W-36 | 36 | 29.0 | 108 | 250 | 100 | 10 |
Additional Information
- Port: Ningbo, Shanghai, any port in China.
- Payment Terms: T/T, L/C.
- Packing: 3 pcs per carton lined with foam, custom packaging available.
- Shipping: By sea, air, or express as per customer’s choice.
- Delivery time: Dependent on quantity.
