30m/min double layer roof sheet roll forming machine
Inquire NowDescription

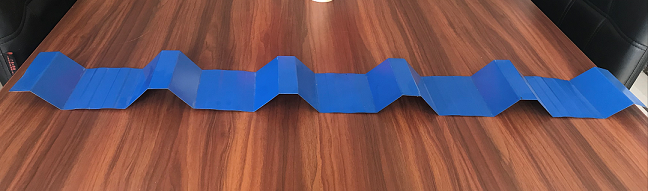

The 30m/min Double Layer Roof Sheet Roll Forming Machine is a high-performance equipment designed for the efficient production of double-layer roof sheets. This advanced machine operates at a remarkable speed of 30 meters per minute, allowing for rapid manufacturing without compromising quality. Constructed with precision, it features a robust main roll forming machine with chromed plates, ensuring durability and longevity. The system is equipped with a hydraulic cutting mechanism, ensuring clean cuts for all sheet types. This machine is ideal for producing roof panels from various materials including PPGI, GI, and Aluminum, offering versatility for different construction needs.
Specifications
| Feature | Specification |
|---|---|
| Matching Material | PPGI/GI/Aluminium |
| Material Thickness | 0.2-0.8mm |
| Power | 7.5kW |
| Forming Speed | 6-8m/min / 30m/min (according to the drawings) |
| Width of Plates | According to the drawings |
| Input Leveling Equipment | Adjustable |
| Roll Stations | 20-22 |
| Shaft Material and Diameter | 45# steel, ￠75mm |
| Tolerance | 10m ± 1.5mm |
| Drive Method | Chain driven |
| Controlling System | PLC |
| Voltage | Depends on client |
| Material of Forming Rollers | 45# steel heat treatment and chromed |
| Side Plate | Steel plate with chromed |
| Size | 13 T |
Additional Information

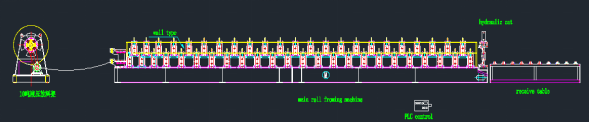

- Components:
- Manual – Coiler x 2 sets
- Adjustable Input Equipment x 2 sets
- Main Roll Forming Machine with Chromed Plate x 2 sets
- Hydraulic Cutting System x 2 sets
- Hydraulic Station x 1 set
- PLC Control System x 1 set
